Arizon Nexus Wave3000 | Arizon
RRP (Ex.GST)
Couldn't load pickup availability

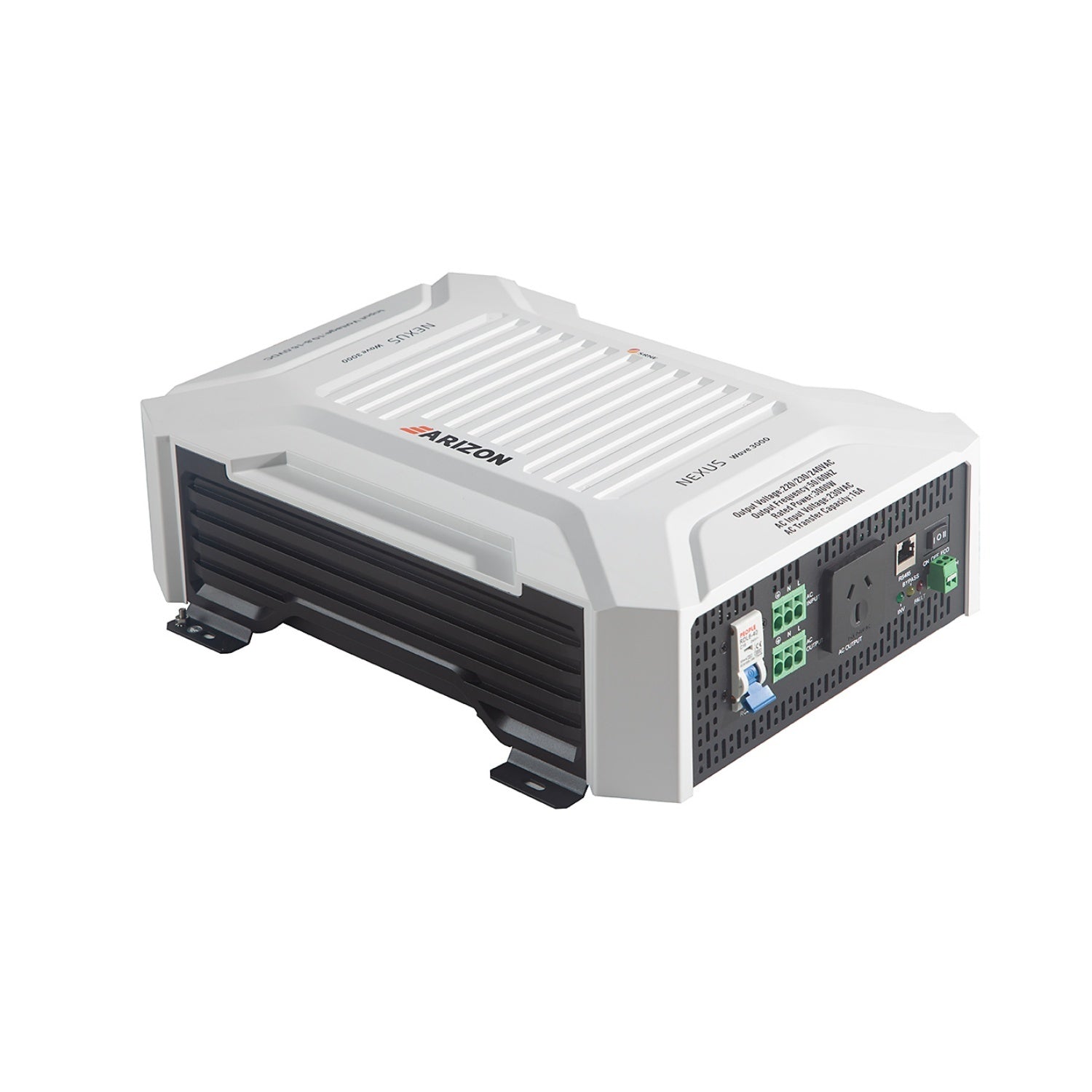

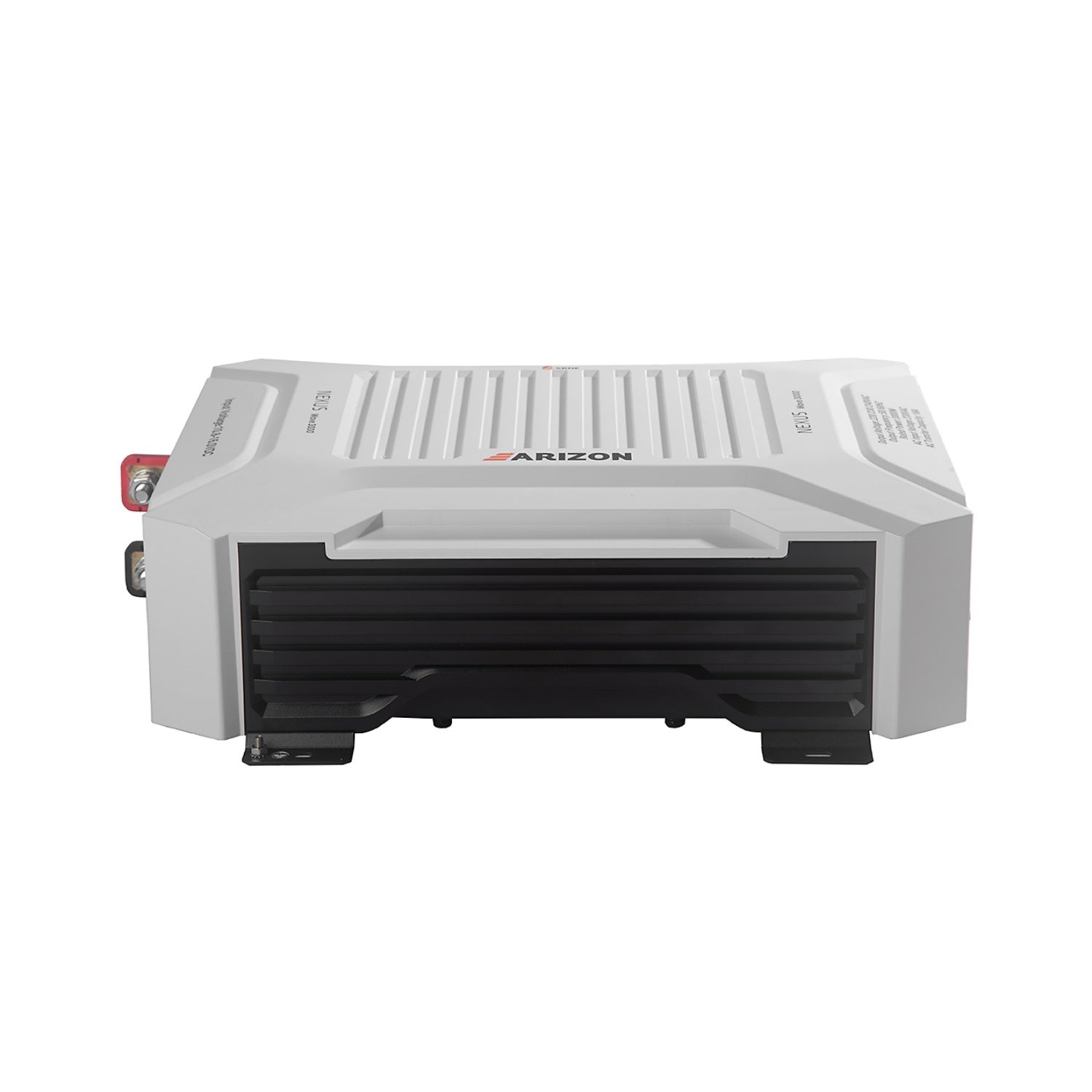

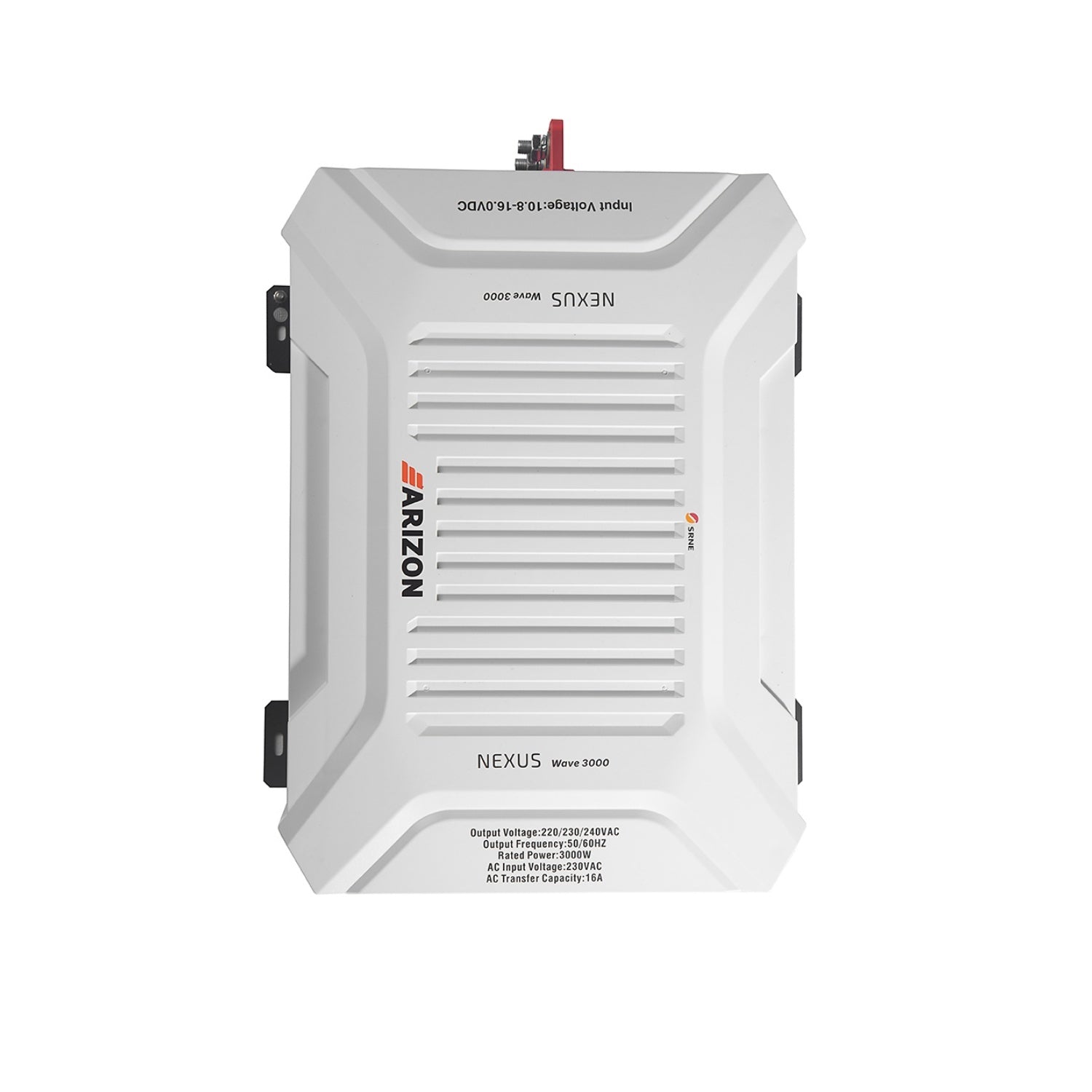

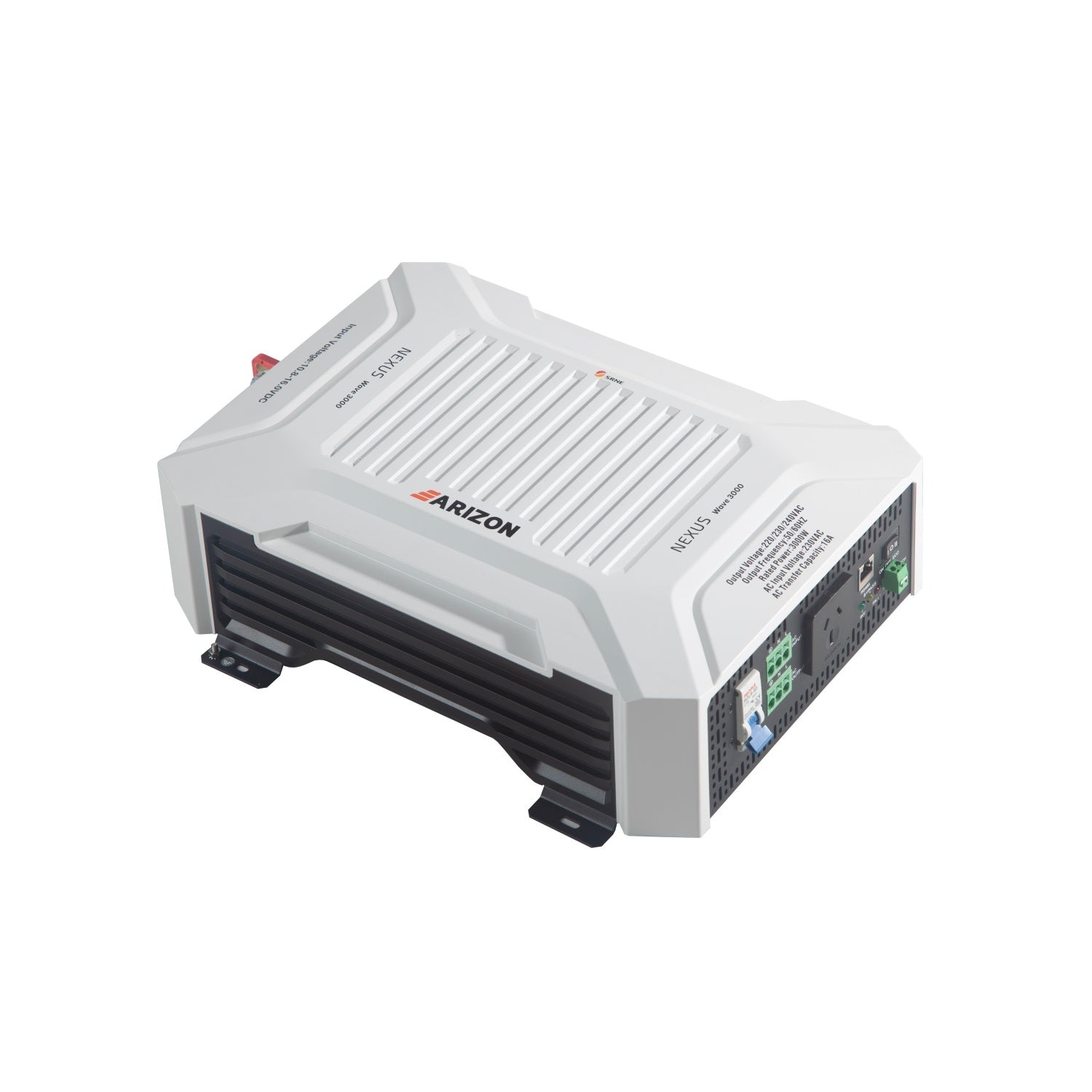

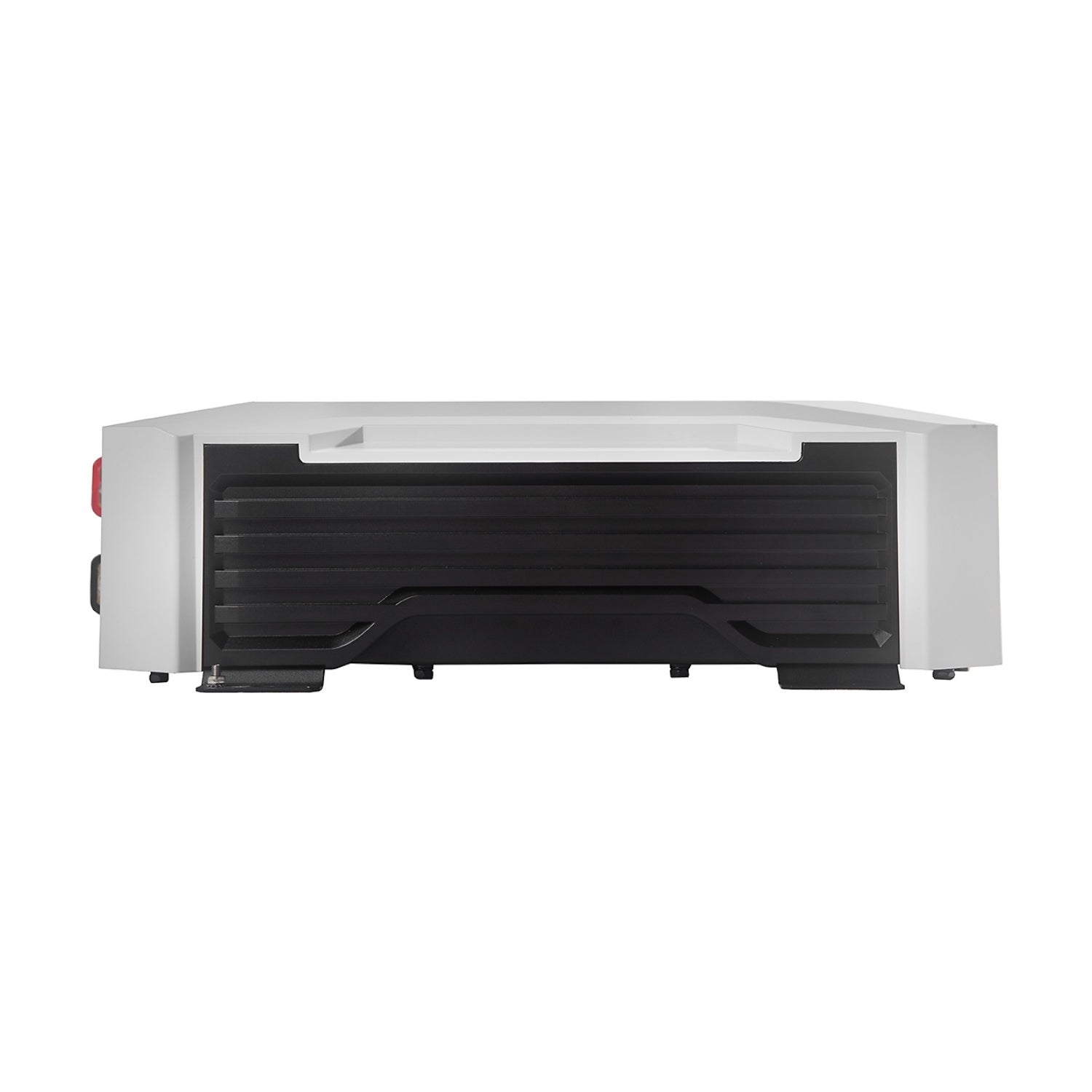

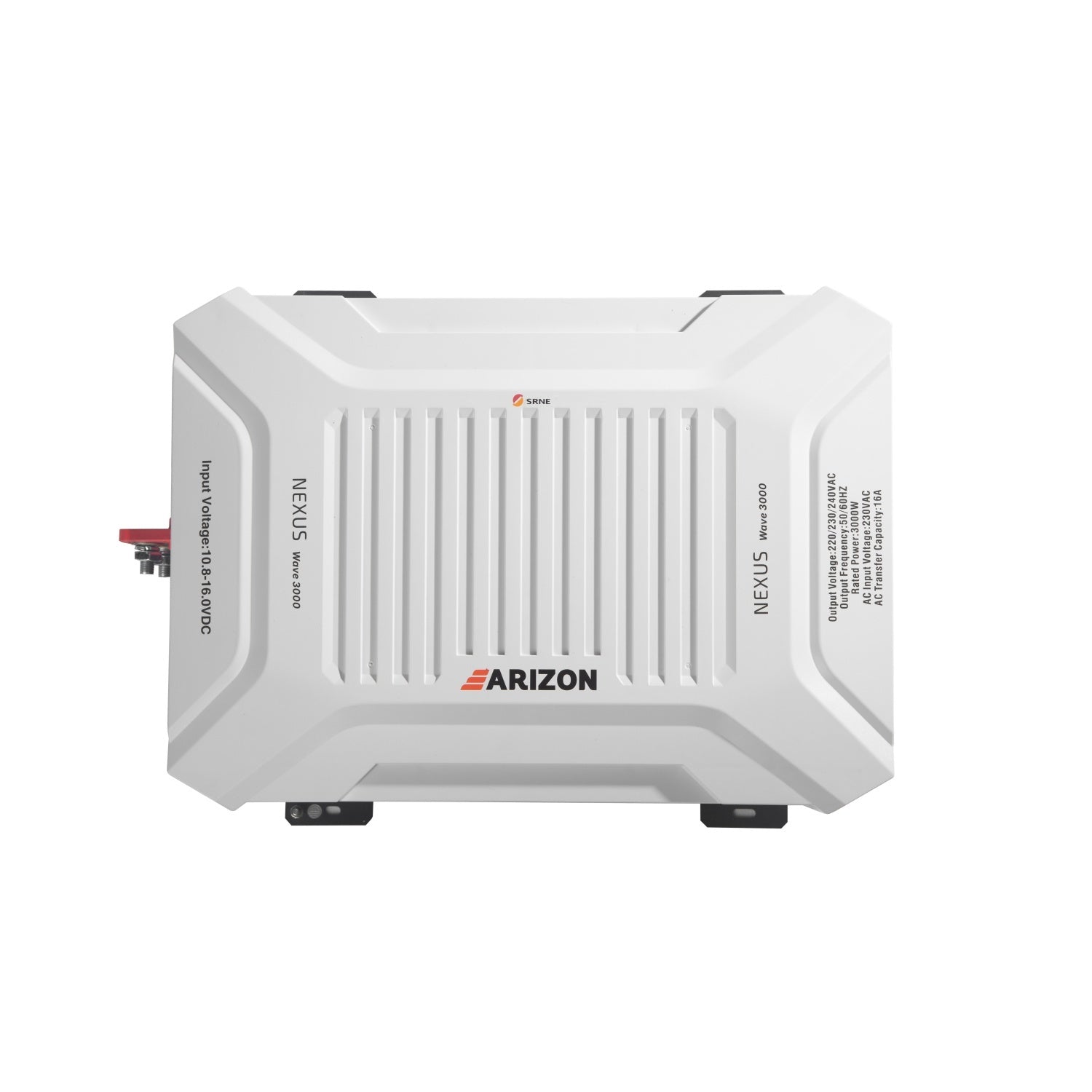

Nexus Wave 3000W Inverter
Pure sine wave inverter with transfer switch. 3000W continuous output. 6000W peak. 12V system. Bluetooth enabled.
Stable & Reliable Power
Advanced SPWM modulation technology delivers pure sine wave output with high power quality. High power density and long-life components support long-term operation at full power.
High Efficiency
High conversion efficiency with low loss and low harmonic distortion rate. Supports ECO energy-saving mode to maximise power savings.
Intelligent Control
Bluetooth as standard — supports mobile phone app to view device operating parameters. Multiple expansion interfaces to meet diverse user needs.
Comprehensive Safety Protection
Features battery over-voltage and over-discharge protection, output overload and short-circuit protection, and over-temperature protection. N-C earthing protection in inverter mode. Anti-surge design for lithium battery power supply systems. Equipped with RCD leakage protection switch.
Key Benefits
- 3,000W continuous / 6,000W peak power
- Pure sine wave output
- ECO energy-saving mode
- Bluetooth monitoring via mobile app
- RCD leakage protection switch
- UPS function with automatic transfer
- Anti-surge design for lithium batteries
- Multiple expansion interfaces
Built for Real Applications
Perfect for:
- Caravan and RV systems
- Off-grid power setups
- Lithium battery systems
- Backup power applications
What's Included
- Nexus Wave 3000W Inverter unit

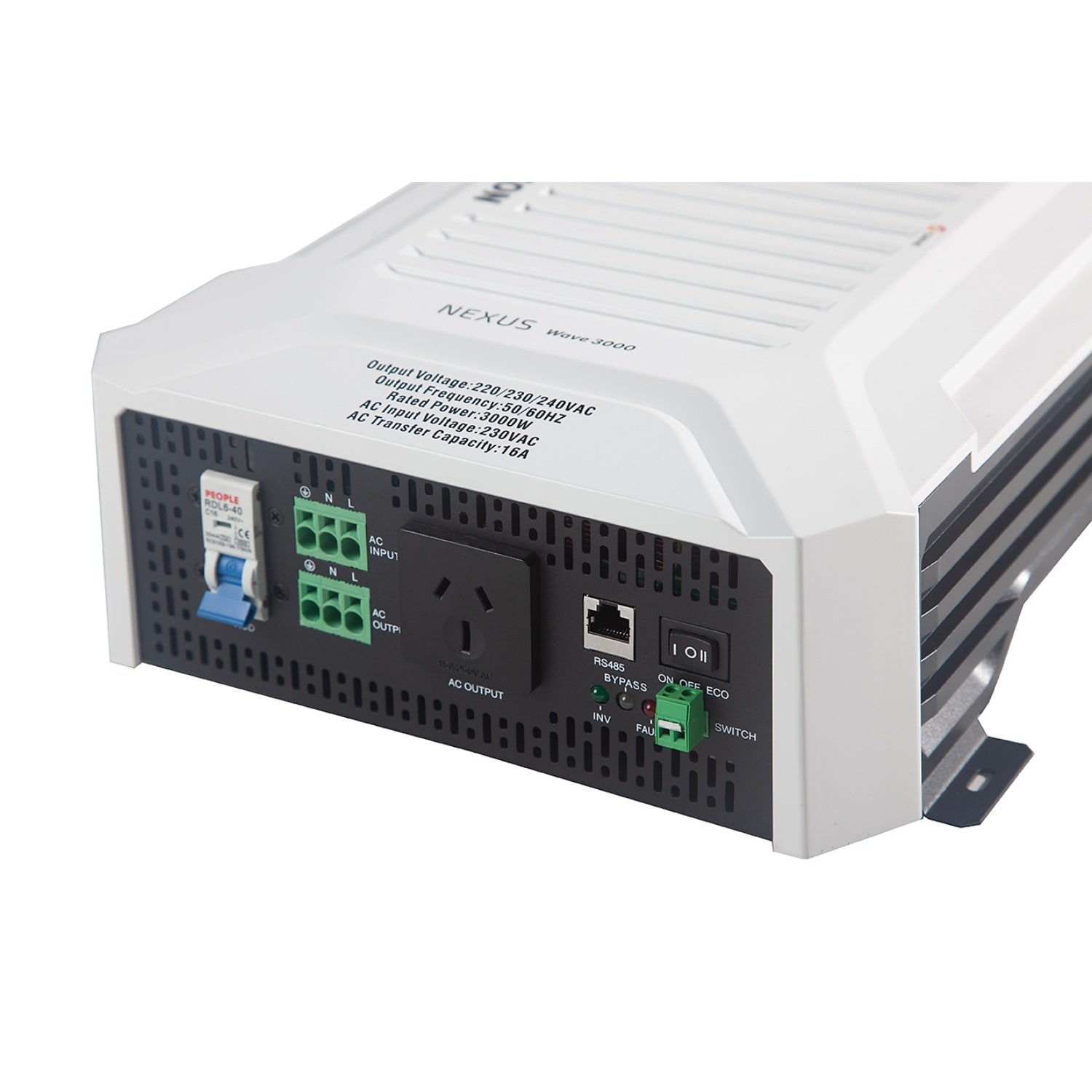

- AC input terminal AC output terminals (2) with RCD leakage protection switch.
- External switch contact interface
- ON/OFF/ECO Mode switch
- User manual
Note: Battery connection cables not included. Professional installation recommended. Please read user manual for more information.
Technical Specifications
- Model: NX-WAVE3000 (3kW)
- Rated Input Voltage: 12VDC

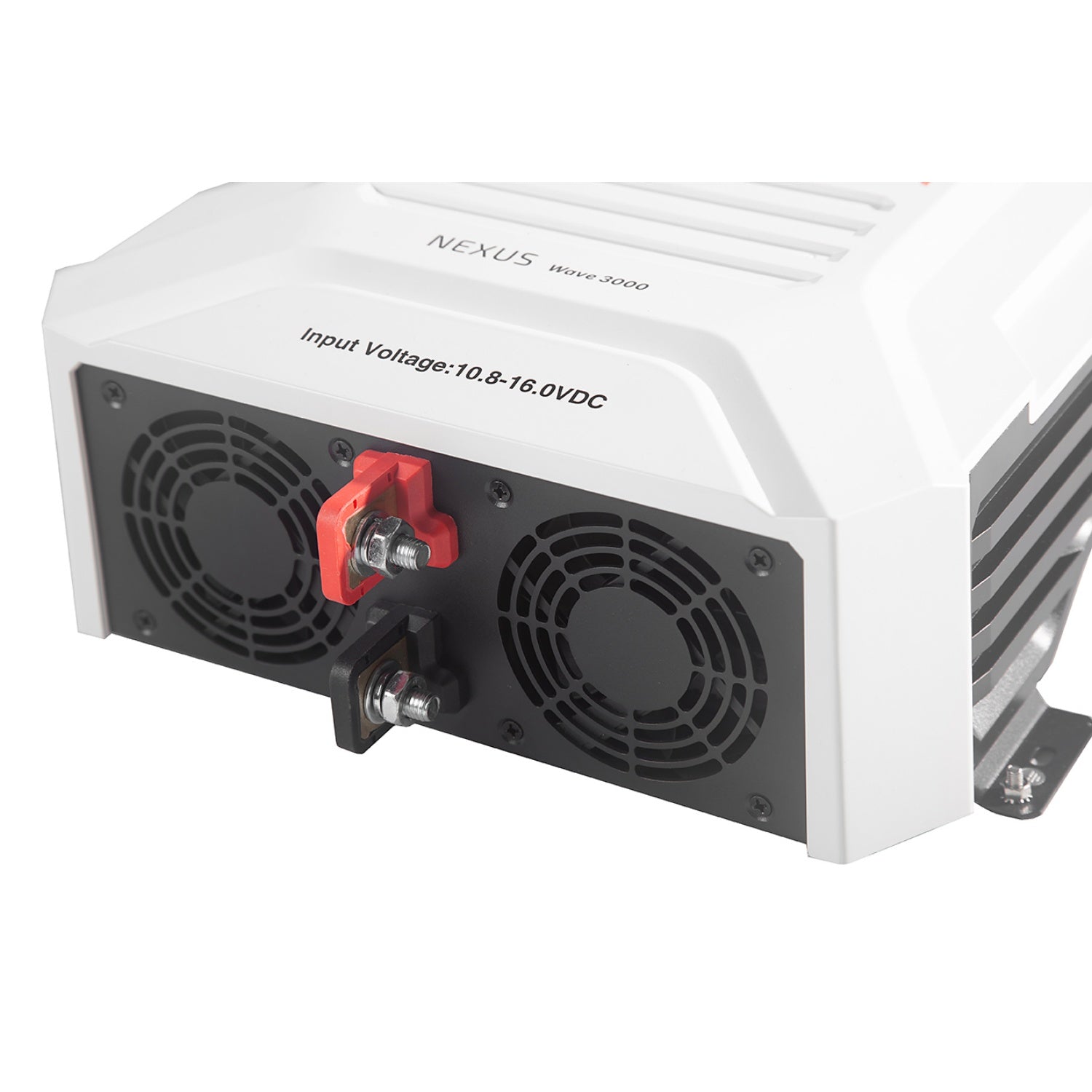

- Input Voltage Range: 10.8 ~ 16.0VDC
- Rated Output Power: 3,000W
- Peak Power: 6,000W
- Output Voltage: 220VAC / 230VAC (default) / 240VAC (±2%)
- Output Frequency: 50Hz (default) / 60Hz (±0.1%)
- Output Waveform: Pure Sine Wave
- THD: <4% (resistive load)
- Power Factor: 1.0
- Max Output Efficiency: >87%
- ECO Mode No-load Loss: <3W
- AC Input Voltage: 180-265VAC (Single-Phase)
- AC Input Frequency: 45~65Hz
- AC Input Current: 16A
- Dimensions: 400 x 300 x 116mm
- Weight: 8.0kg
- Protection Degree: IP20
- Cooling Method: Natural cooling + intelligent fan
- Noise: ≤60dB
- Ambient Temperature: -20°C to 60°C
Complete Your System
Works seamlessly with:
- Arizon Nexus power control systems
- Arizon lithium batteries
- Solar charging systems
- Arizon Bluetooth monitoring app
Build a complete, intelligent off-grid power solution with Arizon Nexus.
