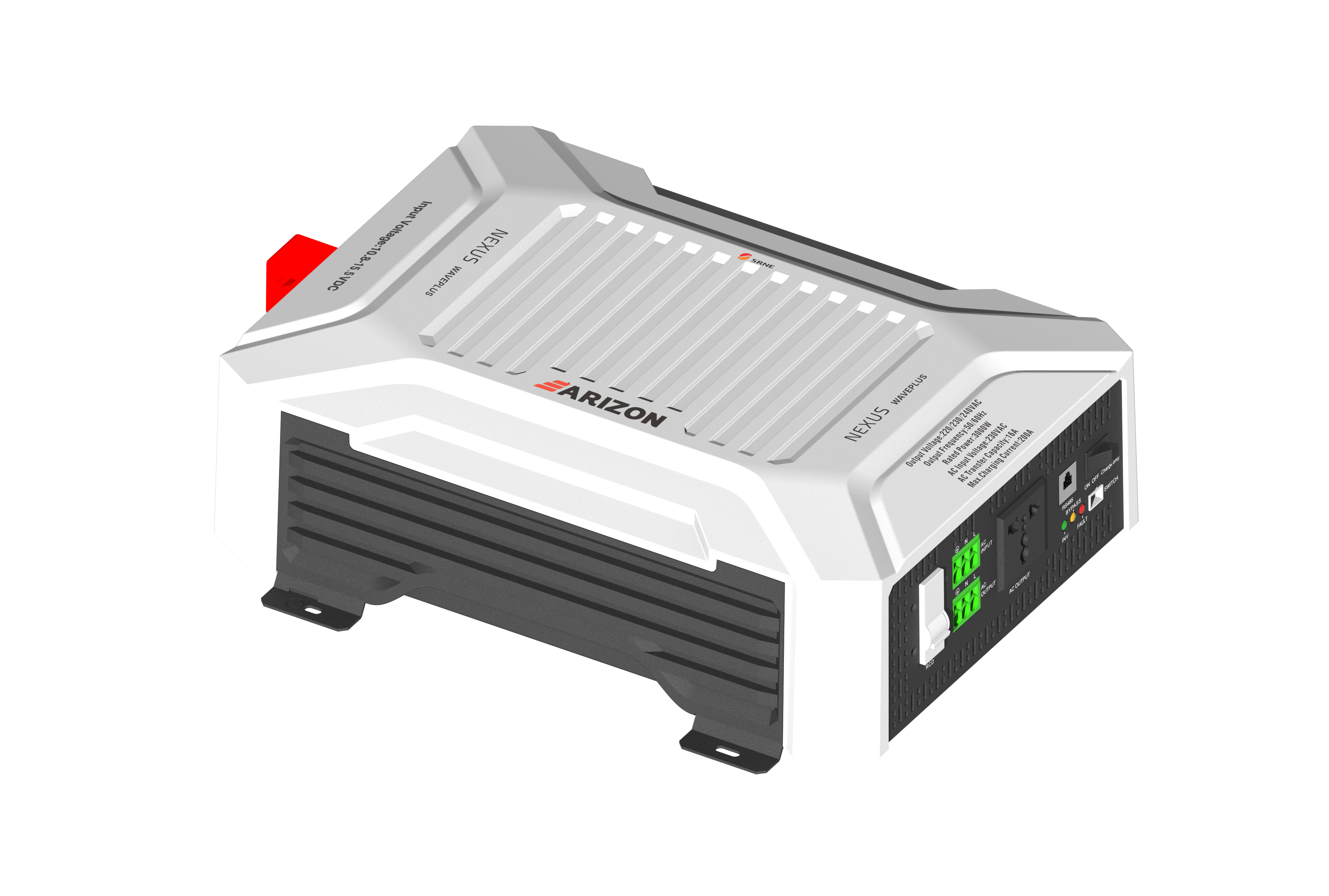

Arizon Nexus WavePlus 3000W 12V Inverter/Charger
Pure sine wave high-frequency inverter/charger. 3000W continuous output. 6000W peak. 12V system. 200A charging. Bluetooth enabled.
Stable & Reliable Power
Advanced SPWM modulation technology delivers pure sine wave output with high power quality. High power density and long-life components support long-term operation at full power.
High Efficiency
High conversion efficiency with low losses and low harmonic distortion rate. Maximum efficiency exceeds 93.5% for optimal energy usage.
Intelligent Control
Bluetooth as standard — supports mobile phone app to view device operating parameters. Utility bypass output with inverter output automatic uninterrupted switching power supply.
Comprehensive Safety Protection
Features battery over-voltage and over-discharge protection, output overload and short-circuit protection, and over-temperature protection. Surge protection design suitable for lithium battery power systems. Equipped with AC output RCD earth leakage protection switch.
Key Benefits
- 3,000W continuous / 6,000W peak power
- 93.5% maximum efficiency
- 200A rated charging current
- Bluetooth monitoring via mobile app
- Pure sine wave output
- RCD earth leakage protection
- Automatic uninterrupted power switching
- Surge protection for lithium batteries
Built for Real Applications
Perfect for:
- Caravan and RV systems
- Motorhome and van conversions
- Off-grid power setups
- Lithium battery systems
- Backup power applications
What's Included
- NEXUS WavePlus 3000W Inverter/Charger unit
- AC input port with RCD leakage protection switch
- AC output ports (2)
- External switch terminal
- RS485 communication port
- User manual
Note: Battery connection cables not included. Professional installation recommended.
Technical Specifications
- Rated Output Power: 3,000W
- Peak Power: 6,000W
- Rated Output Voltage: 220/230 (default) /240VAC (±2%)
- Output Frequency: 50/60Hz
- Output Waveform: Pure sine wave
- THDV: <4% (resistive load)
- Power Factor: 1
- Rated Output Efficiency: >87%
- Max Output Efficiency: >93.5%
- No-load Loss: <20W
- Rated Battery Voltage: 12VDC
- Battery Voltage Range: 10.8~15.5VDC
- Rated Charging Current: 200A
- AC Input Voltage: 180~265VAC (Single-Phase)
- AC Input Frequency: 45~65Hz
- Rated Input Current: 16A
- Dimensions: 400 x 300 x 116mm
- Weight: 8.7kg
- Noise: ≤60dB
- Cooling Method: Natural cooling + intelligent fan
- Protection Degree: IP20
- Ambient Temperature: -20°C to 60°C
- Certifications: CE, ROHS, IEC62109-1/2, EN61000-6-1/3, IEC60335-1/2-29
Complete Your System
Works seamlessly with:
- Arizon NEXUS power control systems
- Arizon lithium batteries
- Solar charging systems
- Arizon Bluetooth monitoring app
Build a complete, intelligent off-grid power solution with Arizon NEXUS.
