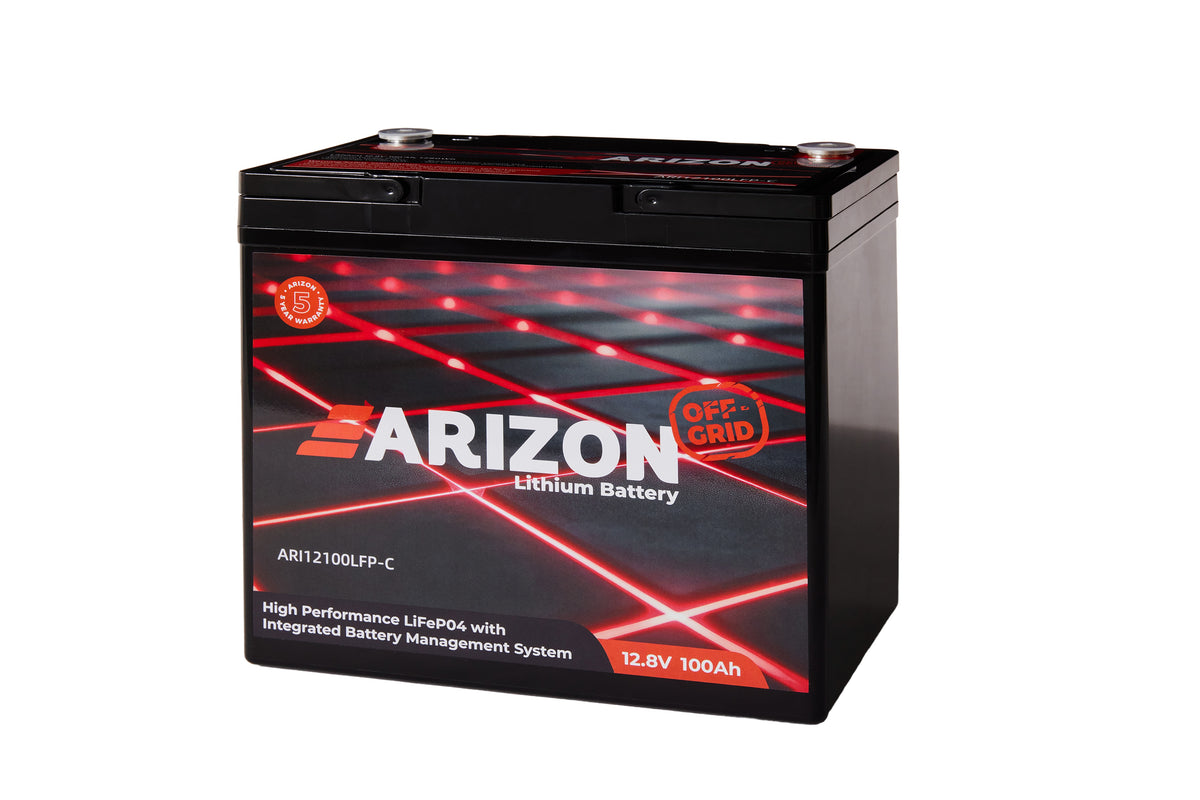

Arizon Off-Grid 12V 100Ah LiFePO₄ Lithium Battery
Compact, dependable 12V lithium power for caravans, motorhomes, 4WDs and off-grid systems. 100Ah capacity. 12.8V nominal voltage. Lightweight 9.59kg design. IP67 rated.
Compact Lithium Power for Your Next Off-Grid Adventure
The Arizon Off-Grid 12V 100Ah Lithium Battery is a practical, lightweight energy storage solution for caravans, motorhomes, campervans, 4WDs and smaller off-grid power systems. Using prismatic LiFePO₄ cells, this 12.8V lithium battery delivers 100Ah of nominal capacity in a compact package weighing just 9.59kg.
It provides dependable power while offering the weight and efficiency advantages of lithium technology over traditional lead-acid battery systems.
Built for Australian Off-Grid Applications
From weekend camping trips to longer periods away from mains power, the 100Ah Arizon lithium battery provides a dependable source of stored energy for your 12V electrical system. Its IP67-rated construction provides a high level of protection against dust and water ingress, making it well suited to mobile and outdoor applications where equipment can be exposed to challenging conditions.
The battery operates across a broad temperature range, with charging specified from 0°C to 55°C and discharging from -20°C to 55°C.
Lightweight Power Without the Bulk
At only 9.59kg, the ARI12100LFP-C makes it easier to build an efficient mobile power system without carrying the additional weight associated with conventional lead-acid batteries. Its compact dimensions of 228 × 141 × 215mm make it suitable for installations where available battery space is limited.
Key Features
- 100Ah nominal capacity
- 12.8V nominal voltage
- Prismatic LiFePO₄ cells
- 100A continuous discharge current
- 50A continuous charge current
- 14.2-14.4V recommended charge voltage
- 10V minimum discharge voltage
- IP67 rated
- 9.59kg lightweight design
- Compact 228 × 141 × 215mm dimensions
Ideal For
- Caravans and camper trailers
- Motorhomes and campervans
- 4WD touring and camping
- 12V off-grid systems
- Auxiliary power systems
- Portable and mobile energy storage
- Solar-powered battery systems
What's Included
- Arizon Off-Grid 12V 100Ah LiFePO₄ Lithium Battery (ARI12100LFP-C)
- User manual
Technical Specifications
- Model: ARI12100LFP-C
- Nominal Capacity: 100Ah
- Nominal Voltage: 12.8V
- Cell Type: Prismatic LiFePO₄
- Continuous Discharge Current: 100A
- Continuous Charge Current: 50A
- Recommended Charge Voltage: 14.2-14.4V
- Minimum Discharge Voltage: 10V
- IP Rating: IP67
- Weight: 9.59kg
- Dimensions: 228 × 141 × 215mm
- Charging Temperature: 0°C to 55°C
- Discharging Temperature: -20°C to 55°C
- Storage Temperature: -20°C to 55°C
Complete Your System
The Arizon Off-Grid 100Ah 12V LiFePO₄ battery is a smart choice when you need dependable lithium power in a compact, lightweight format. Pair it with Arizon solar panels and power control systems for a complete off-grid solution.
Talk to Our Team
Not sure if the 100Ah battery is right for your setup?
We'll help you choose the right system.
Designed to support compliant lithium battery installations in accordance with AS/NZS 3001.2:2022.
Key installation considerations include:
- Integrated Battery Management System (BMS) protection
- Suitable for installation in sealed or external battery compartments
- Fuse or circuit breaker protection required on the positive conductor
- Battery monitoring recommended for state of charge (SoC) visibility
- Protection from impact, moisture and environmental exposure required
- Installation should comply with appropriate clearance and ventilation requirements
This battery is intended for professional off-grid, caravan, RV and mobile power system applications.
For full compliance requirements, installation should be carried out in accordance with AS/NZS 3001.2:2022 and applicable local electrical regulations.
