Off-Grid Multi - APEX Edition
The pinnacle of Arizon's flagship power solutions. Built for serious adventurers, remote tourers, and overland professionals. Maximum power, resilience, and control.
Uncompromising Performance
For those who push the limits of off-grid travel and demand nothing short of excellence, the APEX Edition delivers maximum power, resilience, and control — no matter how rugged or remote your journey. Every detail is purpose-built for the traveller who settles for nothing but the best.
Space-Saving Design
Maintains the signature space-saving, behind-the-fridge installation of the standard Off-Grid Multi. Features a 3-board modular configuration with DC-DC chargers mounted on a dedicated panel — a design that enhances charging capability, optimises thermal performance, and allows for more flexible, efficient installation.
Massive Charging Capability
Supports significantly larger solar arrays and massive vehicle charging input while driving. Available in both 12V and 24V configurations, unlocking an entirely new tier of performance.
24V Industrial-Grade Power
The 24V variant further elevates capability with support of a 5000VA inverter/charger, delivering industrial-grade power for even the most demanding off-grid applications.
Advanced System Intelligence
Real-time monitoring and control with Cerbo GX and GX Touch 70 display. Total system visibility from anywhere via VRM portal.
Key Benefits
- 3-board modular configuration
- Dedicated DC-DC charging panel
- Supports 5000VA inverter/charger (24V variant)
- Massive solar array capacity
- High-power vehicle charging input
- Cerbo GX with GX Touch 70 display
- Remote monitoring via VRM portal
- Behind-the-fridge space-saving design
Built for Real Applications
Perfect for:
- Full-time off-grid living
- Remote touring and overland expeditions
- High-demand commercial and mobile operations
- Professional caravan and motorhome builds
- Extreme environment applications

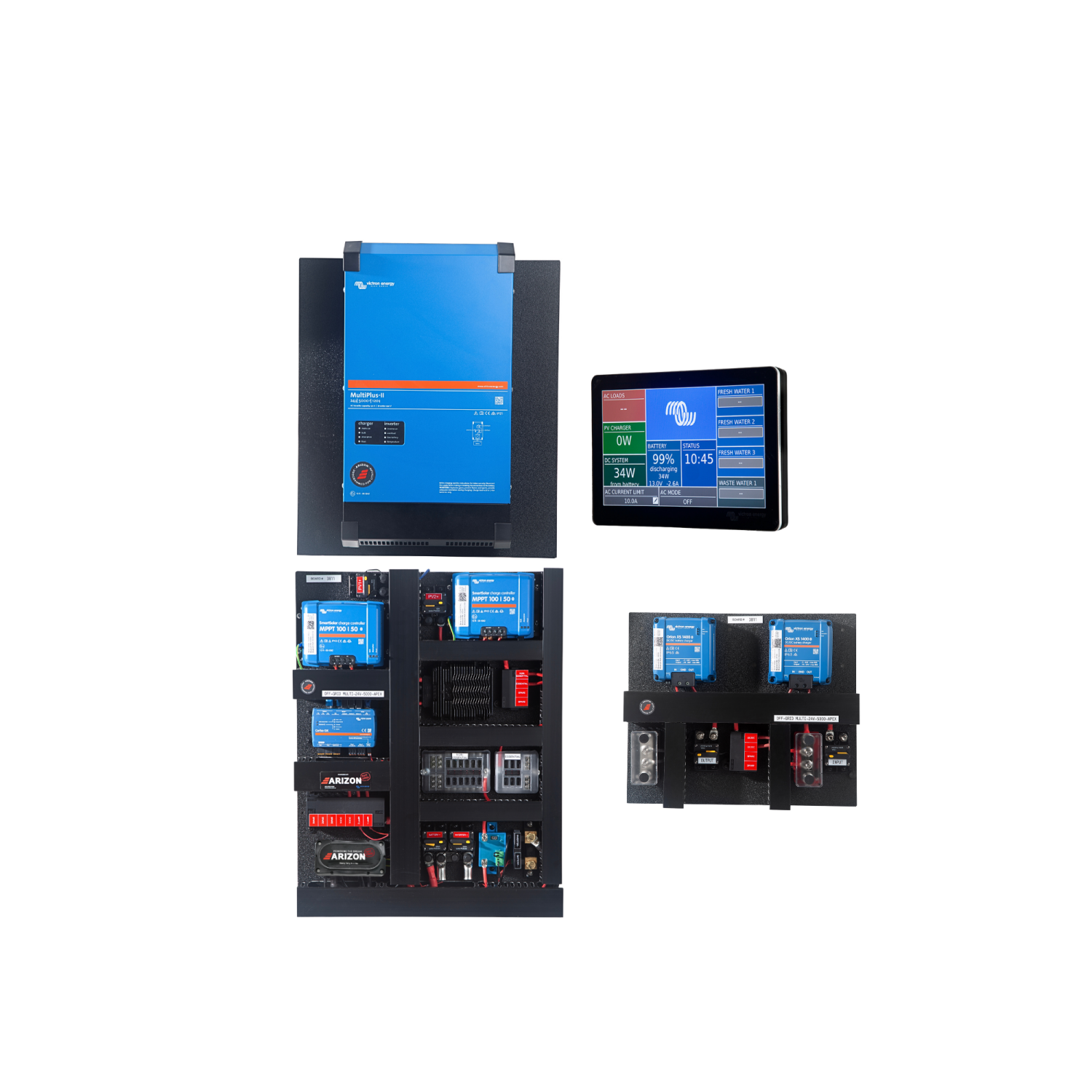

What's Included
12V APEX Edition (3000VA):
- 3 x SmartSolar MPPT 100/50
- 2 x Orion-XS 12/12-50A DC-DC Chargers (Separate Panel)
- Smart Shunt 500A/50mV
- Cerbo GX
- GX Touch 70 Display
- Battery Protect 65A
- MultiPlus-II 3000VA
- 7 x Midi Fuse Box (Positive)
- 6 Pole Busbar (Negative)
- 1 x 12 Ways Fuse Block - Non-essential
- 1 x 6 Ways Fuse Block - Essential
- 6 x Resettable Circuit Breakers
24V APEX Edition (5000VA):

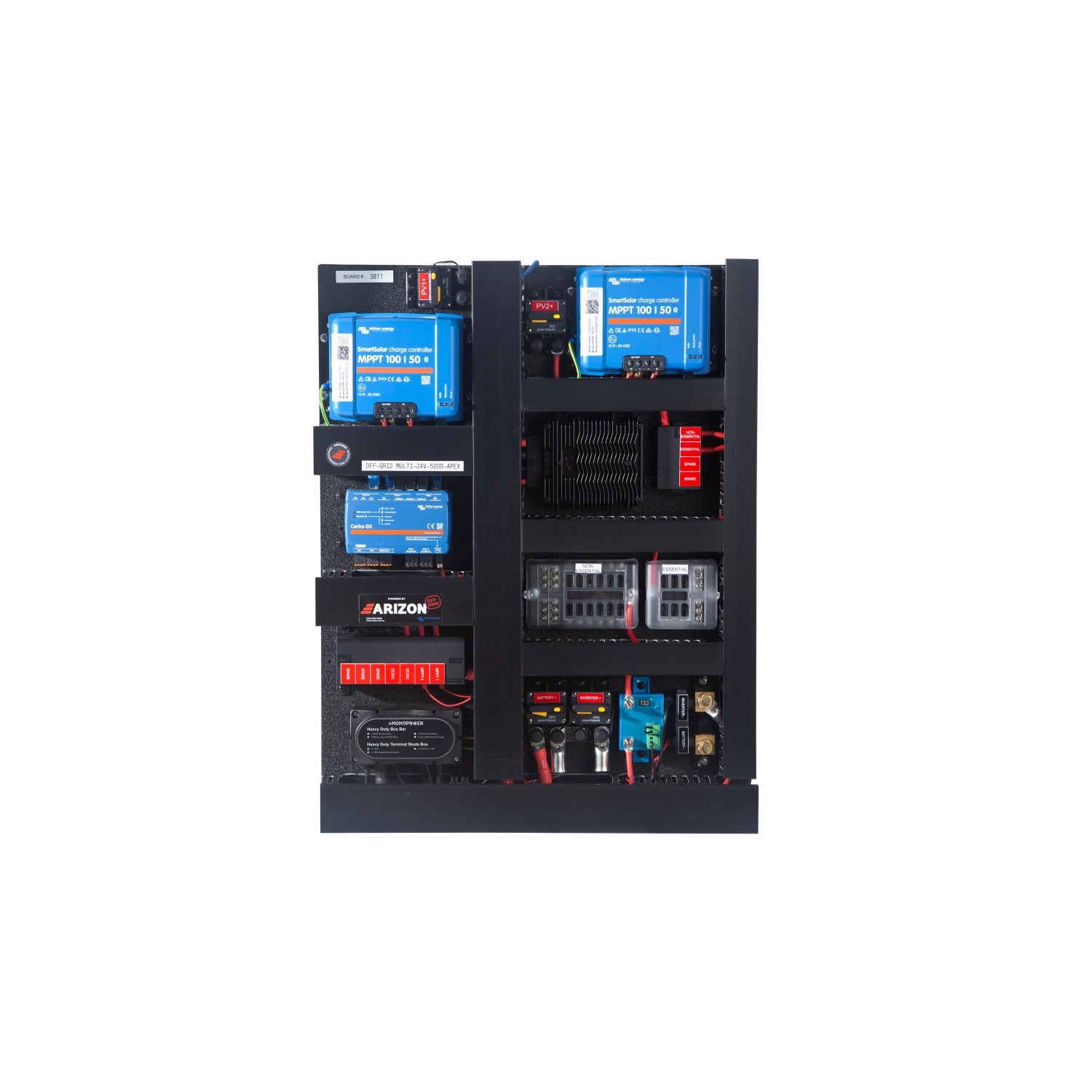

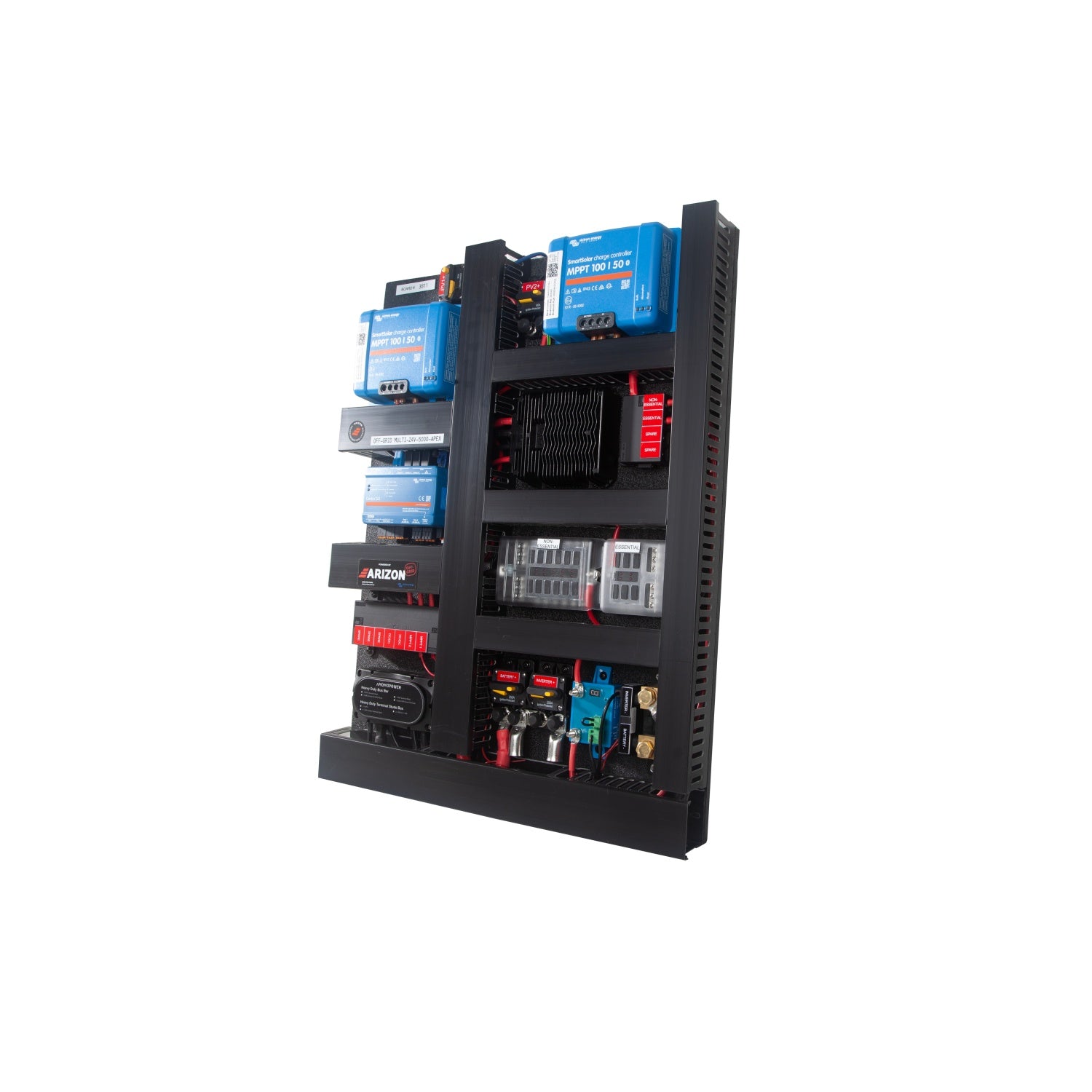

- 2 x SmartSolar MPPT 100/50

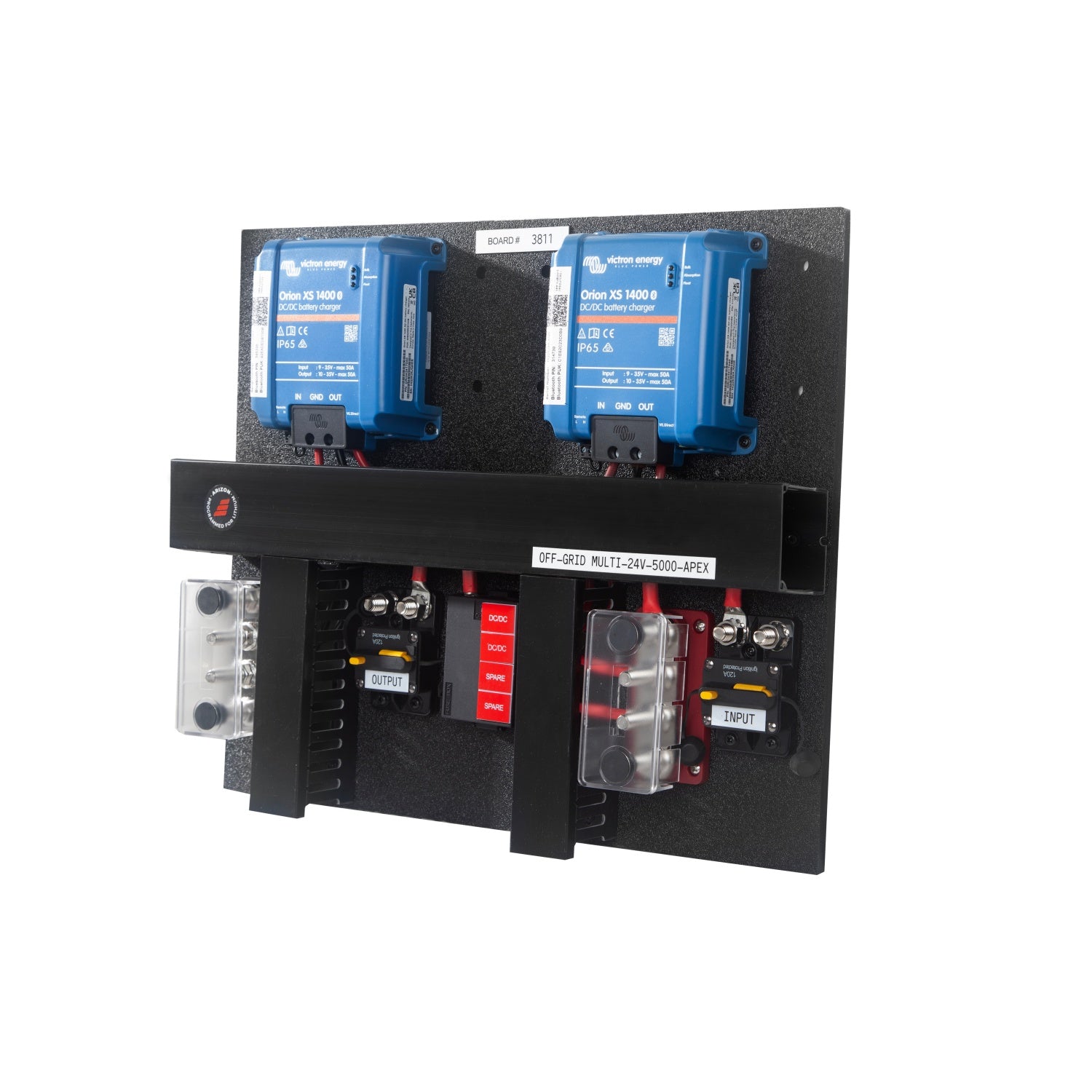

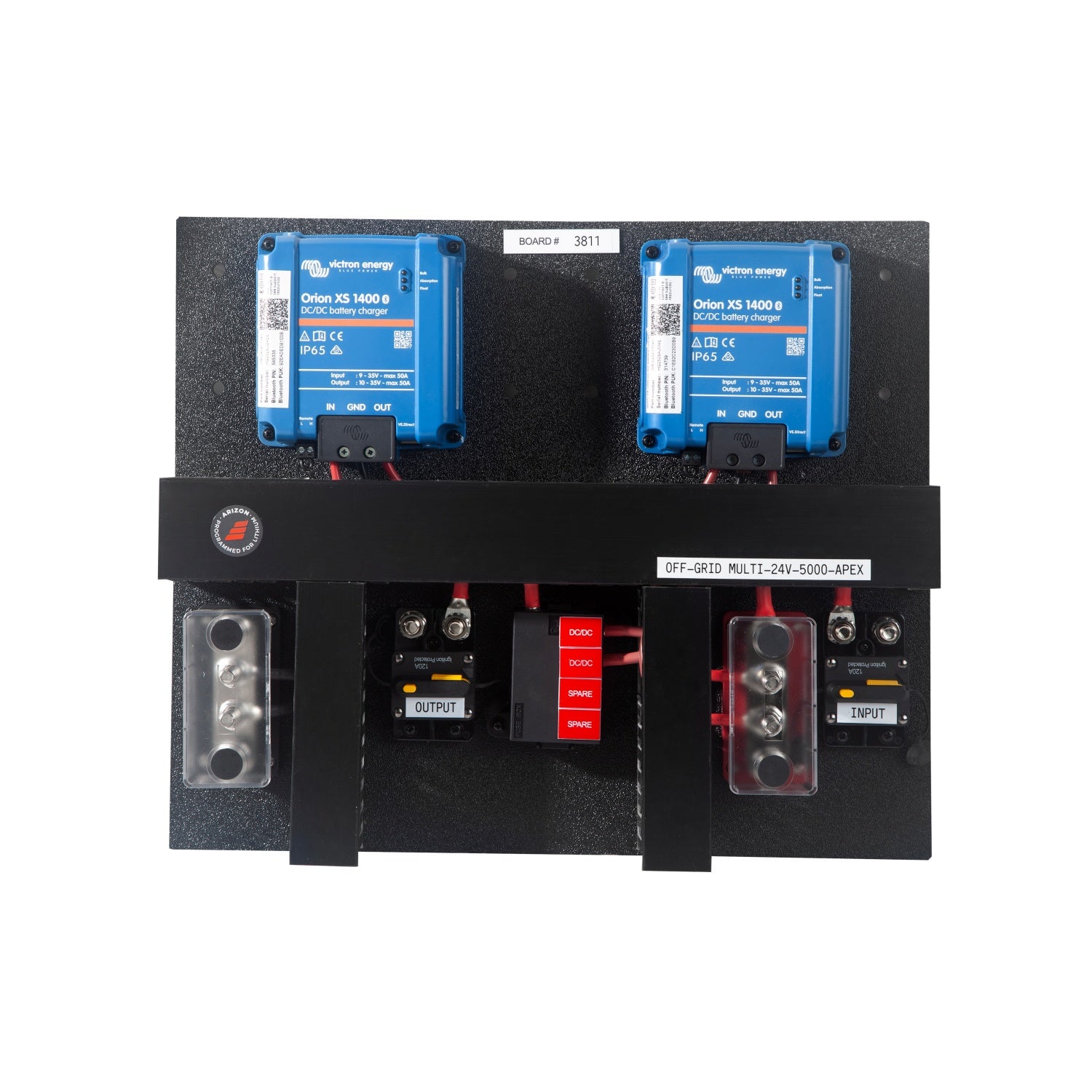

- 2 x Orion-XS 1400 DC-DC Chargers (Separate Panel)
- Smart Shunt 500A/50mV
- Cerbo GX
- GX Touch 70 Display
- Battery Protect 65A
- MultiPlus-II 24/5000VA
- Arizon 100A 24V/12V DC Converter
- 7 x Midi Fuse Box (Positive 24V) / 4 x (Positive 12V)
- 6 Pole Busbar (Negative)
- 1 x 12 Ways Fuse Block - Non-essential (12V)
- 1 x 6 Ways Fuse Block - Essential (12V)
- 6 x Resettable Circuit Breakers
Technical Specifications
- Configuration: 3-board modular system
- DC-DC Chargers: Mounted on dedicated panel
- Installation: Behind-the-fridge or external compartment
- Cooling: Optimised thermal performance
- Monitoring: Cerbo GX with GX Touch 70
- Remote Access: VRM portal via GX device
Complete Your System
Works seamlessly with:
- Arizon lithium batteries
- Victron SmartSolar MPPTs
- Victron VRM portal (remote monitoring)
- Cerbo GX ecosystem
This is more than just a power solution — it's the high-performance backbone of serious off-grid energy systems. Whether you're living full-time off the grid, exploring remote landscapes, or managing mobile operations, the APEX Edition delivers uncompromising power with complete peace of mind.
Talk to Our Team
Ready to step up to the APEX Edition?
We'll help you design the right system for your needs.
