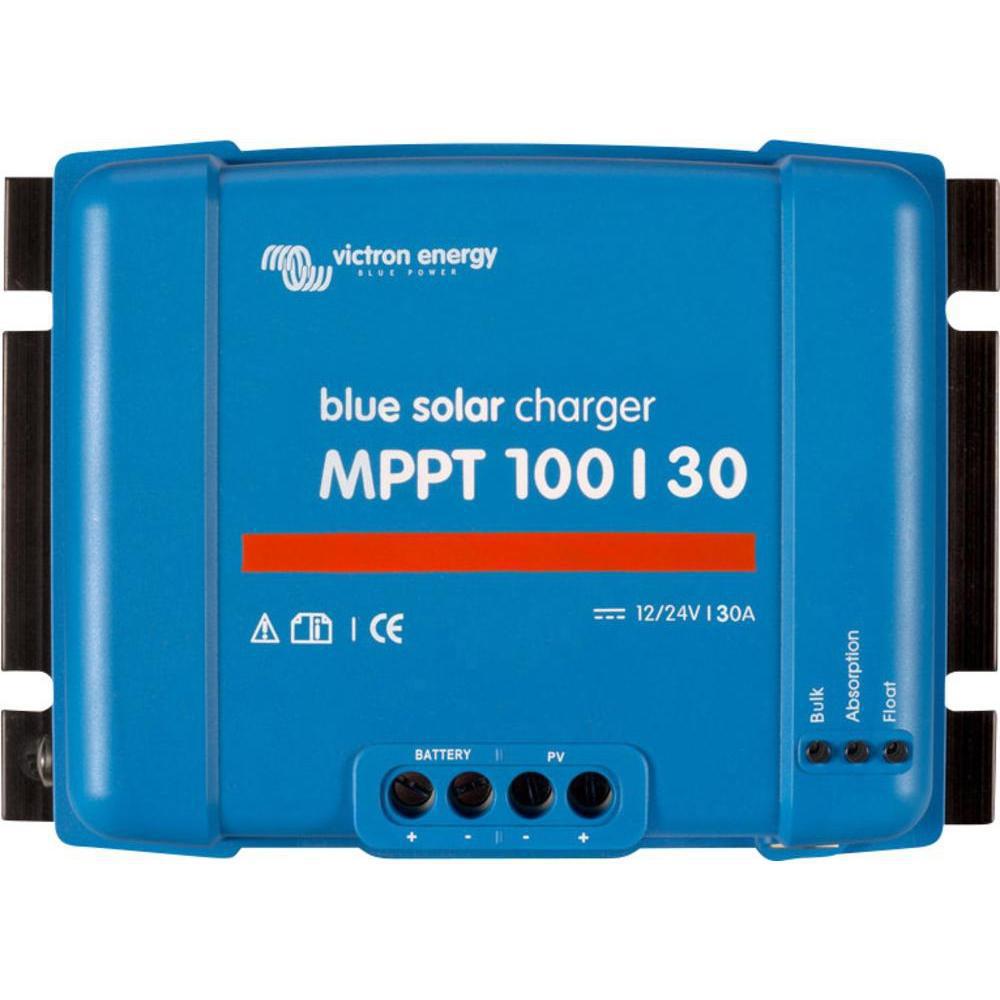

BlueSolar MPPT 100/30 Charge Controller
Ultrafast Maximum Power Point Tracking. 30A solar charge controller.
Ultrafast MPPT Technology
Especially in cloudy conditions when light intensity changes continuously, an ultra-fast MPPT controller improves energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection
If partial shading occurs, two or more maximum power points may appear. Conventional MPPTs tend to lock to a local MPP that may not be the optimum. The innovative BlueSolar algorithm always maximises energy harvest by locking to the optimum MPP.
Outstanding Conversion Efficiency
No cooling fan required. Maximum efficiency exceeds 98%. Delivers full output current up to 40°C.
Flexible Charge Algorithm
Fully programmable charge algorithm available via Victron software, plus eight pre-programmed algorithms selectable with a rotary switch.
Extensive Electronic Protection
- Over-temperature protection and power derating when temperature is high
- PV short circuit protection
- PV reverse polarity protection
- PV reverse current protection
Internal Temperature Sensor
Compensates absorption and float charge voltage for temperature, ensuring optimal battery charging in all conditions.
Real-Time Data Display Options
- ColorControl GX or other GX devices for full system monitoring
- Smartphone or Bluetooth-enabled device (requires VE.Direct Bluetooth Smart dongle)
Key Benefits
- Ultrafast MPPT for maximum energy harvest
- Excellent performance in partial shading conditions
- 98% peak efficiency — no cooling fan needed
- Fully programmable or pre-set charge algorithms
- Comprehensive electronic protections
- Internal temperature sensor for voltage compensation
- VE.Direct communication port for data and monitoring
- Auto-select 12V or 24V battery systems
Built for Real Applications
Perfect for:
- Caravan and RV solar systems
- Marine and boat solar installations
- Off-grid power setups
- 4WD and canopy solar charging
- Remote area power systems
What's Included
- BlueSolar MPPT 100/30 charge controller
- User manual
Complete Your System
Works seamlessly with:
- Victron SmartSolar or BlueSolar panels
- Victron battery monitors (BMV series)
- GX devices (Cerbo GX, ColorControl GX) for full system integration
- VE.Direct Bluetooth Smart dongle for wireless monitoring
- Victron inverter/charger systems
Build a complete, high-efficiency solar charging solution with Victron.
