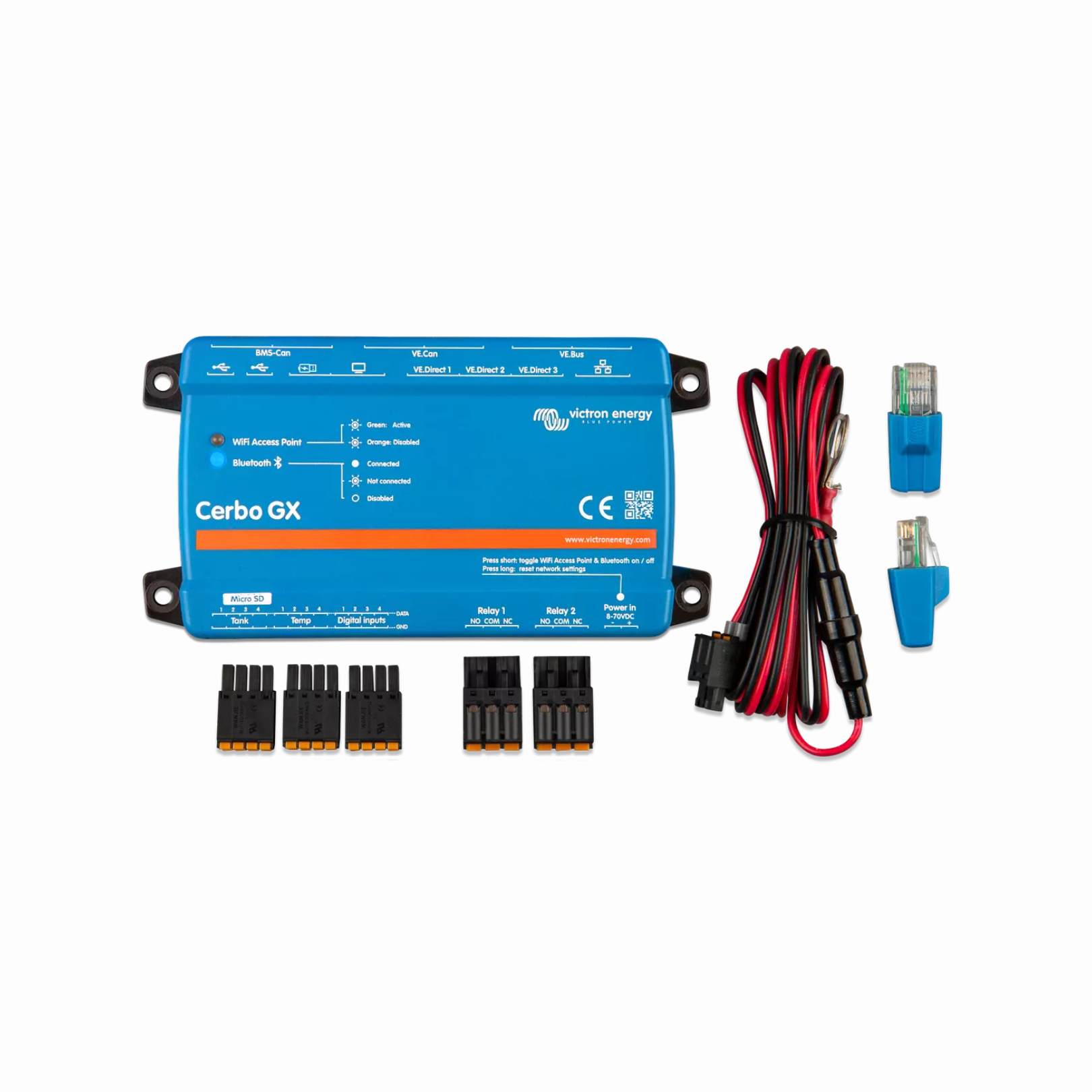

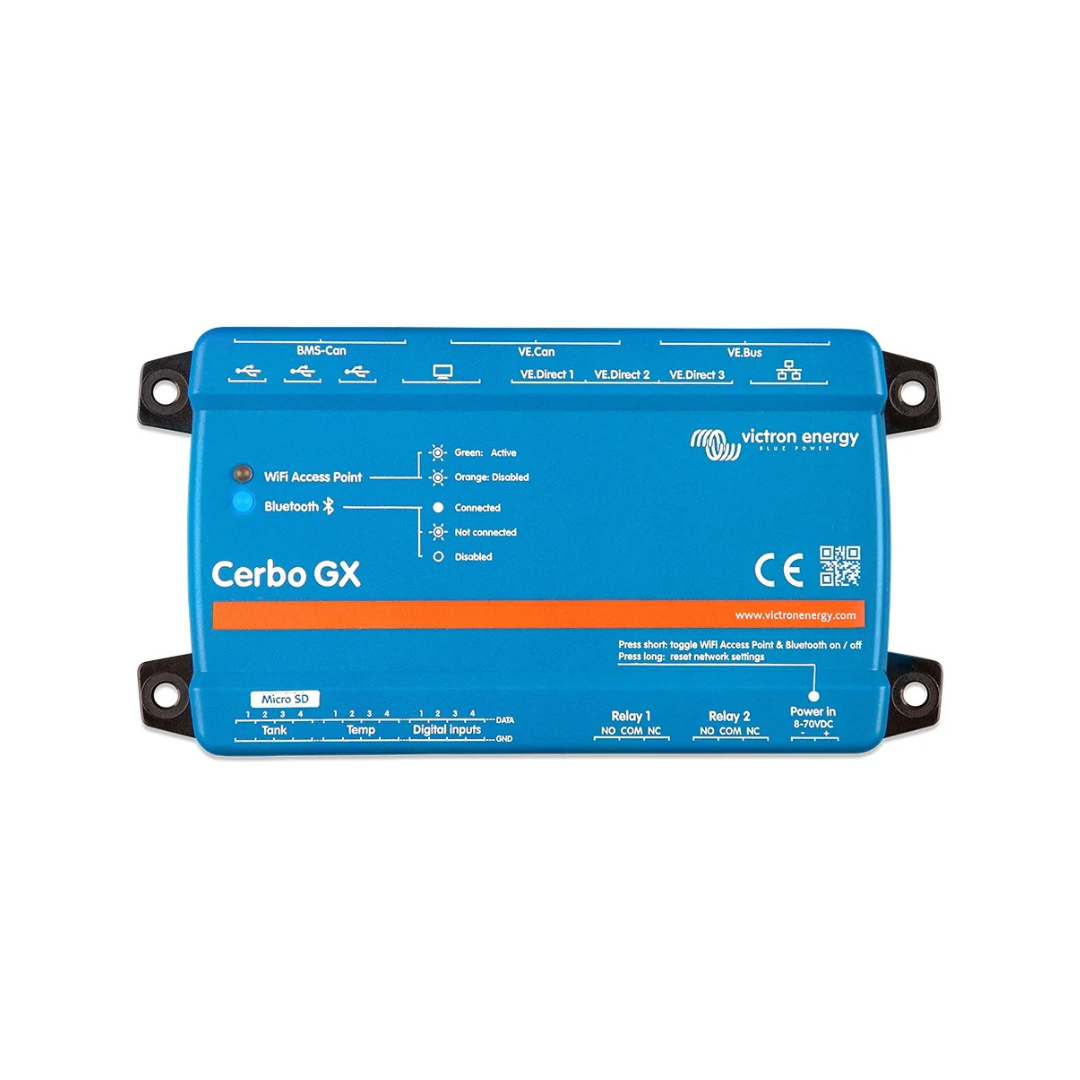

Cerbo GX MK2

System communication centre for battery monitoring and control. Dual VE.Can ports. Bluetooth enabled. 8-70V DC.

Complete System Control

The Cerbo GX MK2 is the advanced communication centre for Victron energy systems. It gives you perfect control over your system from anywhere in the world. Connect via the Victron Remote Management (VRM) portal for remote access, or use the optional GX Touch display, MFD, or VictronConnect app via built-in Bluetooth.

MK2 Hardware Upgrades

This second-generation Cerbo GX features several key improvements over the original model:

• Two fully functional CAN bus ports — VE.Can 1 (isolated) and VE.Can 2
• All three USB ports are fully functional (not just two)
• RJ45 sockets rotated 180 degrees for easier cable removal
• Digital inputs now support pulse counting

Perfect Monitoring & Control

Instantly monitor battery state of charge, power consumption, solar harvest, generator, and mains. Check tank levels and temperature measurements. Easily control shore power input current limit, auto-start/stop generators, or change any setting to optimise your system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely.

Maximise System Performance

The Cerbo GX maximises the performance of your system's components in real time. With its dual-core processor and extra CAN-bus port, you can support even larger systems — closely follow managed lithium batteries while the second port supports up to 25 simultaneously connected VE.Can solar chargers. NMEA 2000-out support enables easy integration into any boat's network.

Expand Your View

The optional GX Touch 50 or GX Touch 70 displays provide an instant overview of your system. The super-slim, waterproof design and simple single-cable connection bring flexibility to any dashboard installation.

Simple Mounting & Configuration

Easily mountable on a DIN rail (with DIN35 adapter, sold separately). The separate touchscreen bolts on top of a dashboard — no complex cut-outs required. Built-in Bluetooth enables quick connection and configuration via the VictronConnect app.

Key Benefits

• Dual VE.Can ports (1 isolated, 1 non-isolated)
• 3 × VE.Direct ports for solar chargers
• 4 × tank level inputs
• 4 × temperature sensor inputs
• 4 × digital inputs (with pulse counting)
• 2 × programmable relays
• Built-in WiFi and Bluetooth
• Remote monitoring via VRM portal
• 8-70V DC wide input range
• 5-year warranty

Built for Real Applications

Perfect for:

• Marine and yacht systems (NMEA 2000 integration)
• Caravan and RV power management
• Off-grid and backup power systems
• Energy Storage Systems (ESS)
• Generator auto-start/stop applications
• Commercial vehicle systems
