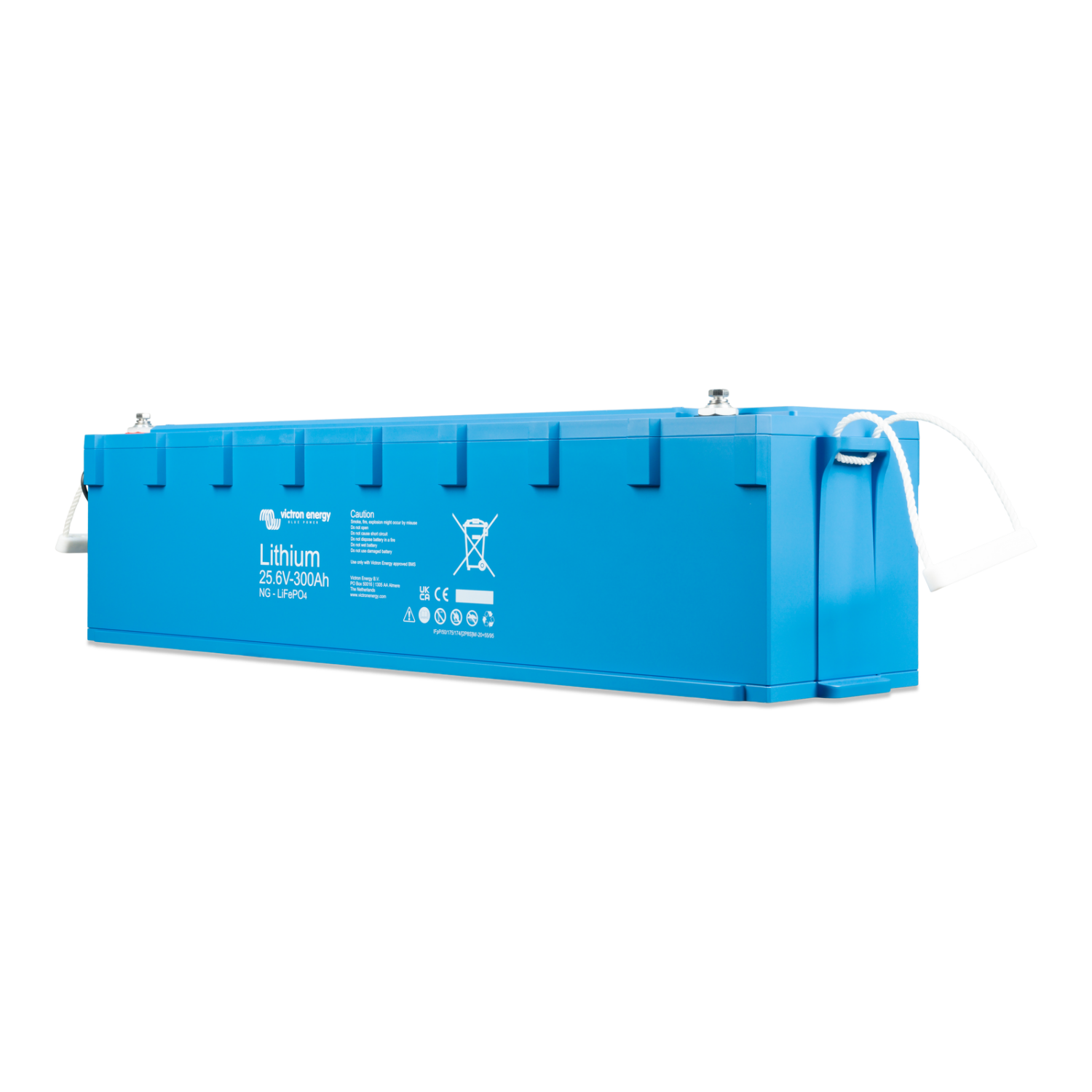

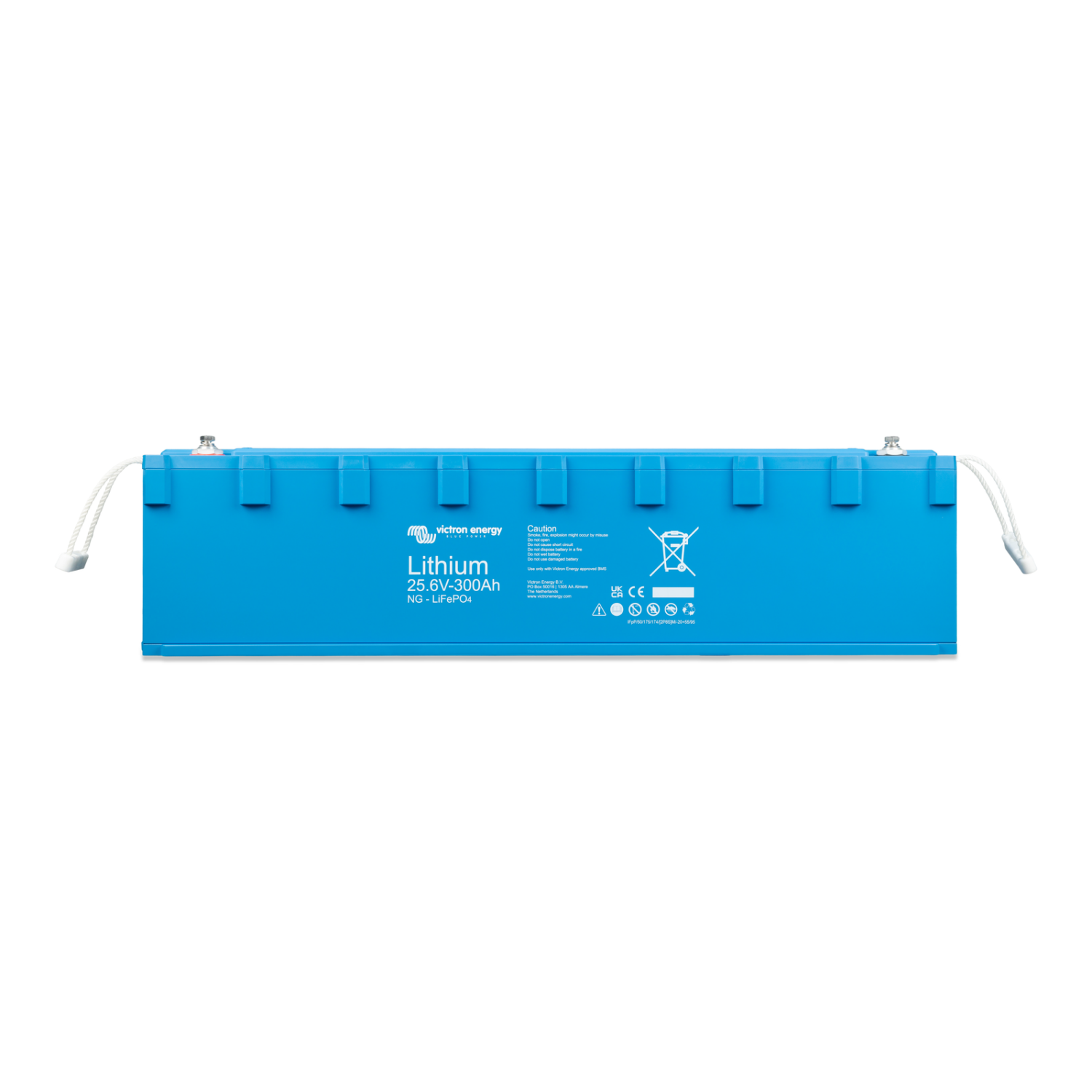

Victron LiFePO4 Battery 25,6V/300Ah NG
Next Generation lithium battery. 25.6V nominal. 300Ah capacity. 7.68kWh energy. IP65 rated. Integrated shunt. Requires Lynx Smart BMS NG.
Next Generation Lithium Technology
The NG (Next Generation) series builds upon the success of the Lithium Smart series with significant enhancements. These batteries feature individual cell voltage and temperature readouts, improved communication between batteries and BMS, and IP65 protection — making them ideal for demanding off-grid, marine, and backup power applications.
Integrated Shunt
Battery data (voltage, current, and temperature) is transmitted to the BMS and evaluated to calculate state of charge. This information can be read out via VictronConnect or a GX communication centre, and used to create specific warnings and alarms.
Automatic Setup and Monitoring
All battery parameters are managed by the BMS automatically. The BMS detects system voltage and the number of batteries in parallel, series, or series/parallel connections. Monitoring and control take place via VictronConnect (Bluetooth), a GX device, or the VRM Portal. View cell status, cell voltages, battery current, and temperatures in real-time. Battery firmware is automatically updated by the BMS.
Easy Bracket Mounting
Mounting brackets make installation easier and ensure the battery is optimally secured against slipping and tipping over. The battery can be mounted upright or on its side — but not with terminals facing down.
IP65 Ingress Protection
Effectively sealed against dust and can withstand low-pressure water jets. Suitable for environments where exposure to dust and water is a concern — ideal for marine, RV, and outdoor installations.
Low Self-Discharge Rate
Maximum 2% self-discharge per month at 25°C, significantly improved from previous models. Contributes to overall performance, longevity, and reliability.
Integrated Cell Balancing and Monitoring
The battery has integrated cell balancing and cell monitoring. The cell balancing/monitoring cables can be daisy-chained and must be connected to a Victron Battery Management System (BMS).
Battery Management System (BMS) Functions
- Generates a pre-alarm when cell voltage decreases below 3.0V
- Disconnects or shuts down load when cell voltage decreases below 2.8V
- Stops charging when cell voltage exceeds 3.6V or temperature is too high/low
Key Benefits
- 300Ah capacity — 7.68kWh energy storage
- IP65 dust and water protection
- Integrated shunt for precise SoC calculation
- Individual cell voltage and temperature readout
- Automatic system voltage detection
- Up to 50 batteries per BMS (384kWh max storage)
- Easy bracket or strap mounting
- Low self-discharge — 2% per month
- 5-year warranty
Built for Real Applications
Perfect for:
- Large caravan and RV systems
- Marine and yacht installations
- Off-grid homes and cabins
- Commercial and industrial backup power
- Energy Storage Systems (ESS)
- 24V battery bank expansion
What's Included
- Victron LiFePO4 Battery 25.6V/300Ah NG unit
- Mounting brackets
- Cell balancing/monitoring cables (daisy-chainable)
- M8 terminal bolts
- User manual
Important: The Lynx Smart BMS NG (500A or 1000A) must be purchased separately. NG batteries cannot be added to non-NG battery systems.
Complete Your System
Works seamlessly with:
- Lynx Smart BMS NG 500A or 1000A (mandatory, sold separately)
- VictronConnect app (Bluetooth monitoring via BMS)
- Cerbo GX or other GX devices (VRM portal monitoring)
- MultiPlus-II inverter/chargers
- SmartSolar MPPT charge controllers
- Additional NG batteries (up to 50 per BMS)
Build a complete, high-performance lithium energy storage system with Victron Energy.
Designed to support compliant lithium battery installations in accordance with AS/NZS 3001.2:2022.
Key installation considerations include:
- Integrated Battery Management System (BMS) protection
- Suitable for installation in sealed or external battery compartments
- Fuse or circuit breaker protection required on the positive conductor
- Battery monitoring recommended for state of charge (SoC) visibility
- Protection from impact, moisture and environmental exposure required
- Installation should comply with appropriate clearance and ventilation requirements
This battery is intended for professional off-grid, caravan, RV and mobile power system applications.
For full compliance requirements, installation should be carried out in accordance with AS/NZS 3001.2:2022 and applicable local electrical regulations.
