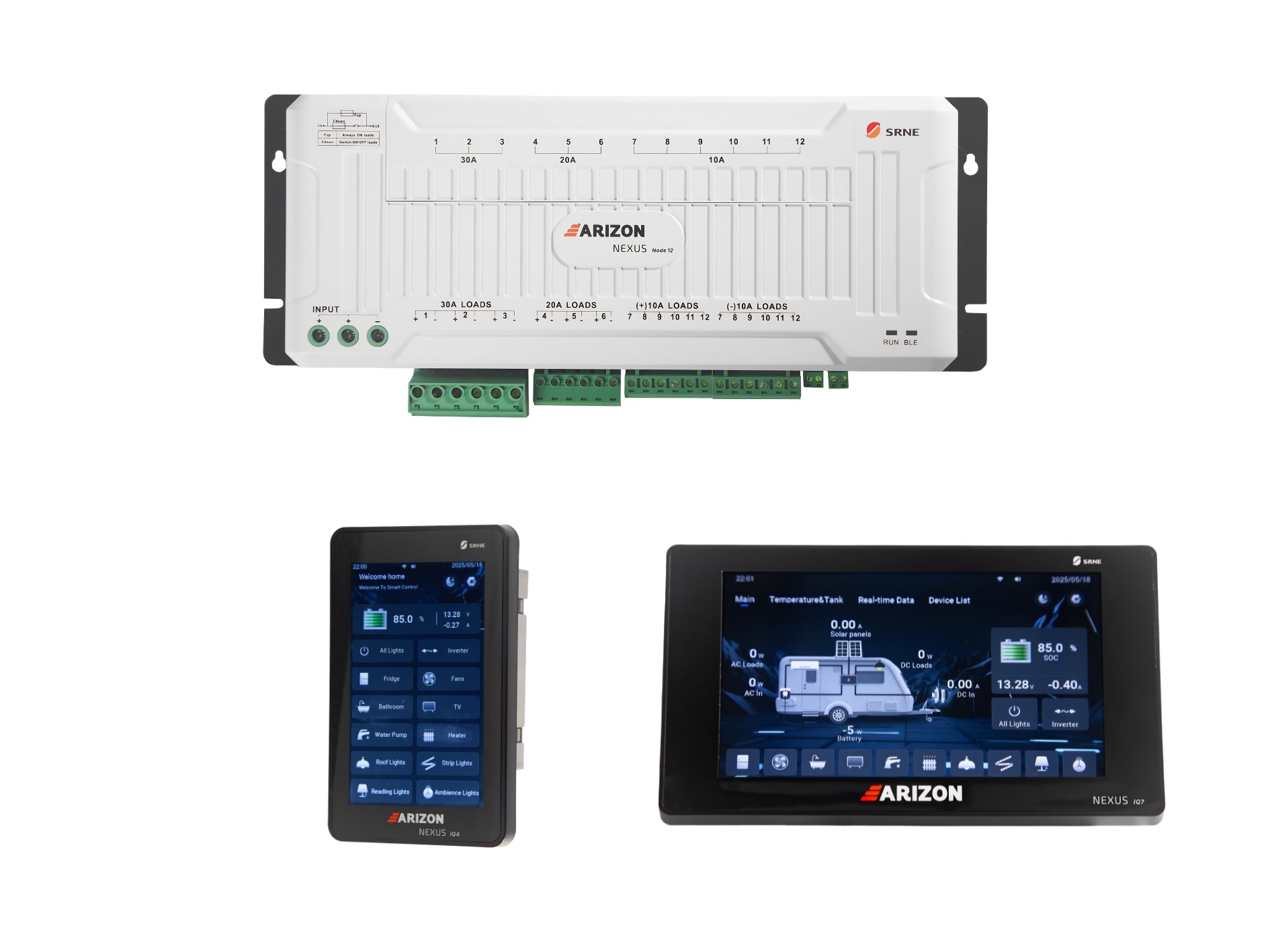

Arizon NEXUS Node12 Bundle

The ultimate solution for efficient DC load control. Digital switching unit with IQ4 and IQ7 touch screens. 12 load outputs. 120A total output.

Powerful Control & Monitoring

The Arizon NEXUS Node12 Digital Switching Unit provides cutting-edge switching capabilities for up to 12 DC loads (3 x 30A, 3 x 20A, and 6 x 10A). It supports a total output current of up to 120A, making it perfect for managing multiple power-hungry systems in caravans, RVs, and mobile installations.

With integrated Bluetooth functionality, you can easily monitor and control your electrical setup using the mobile app, anytime, anywhere.

Protection You Can Rely On

Safety is a top priority with the Arizon NEXUS Node12 Bundle. The system offers robust protection features like over-voltage, over-discharge, over-current, and high-temperature protection to keep your setup running smoothly under any conditions.

The built-in fuse indication and manual bypass function ensure you can quickly diagnose and resolve issues, ensuring peace of mind during your travels.

Flexible, Customisable, and Easy to Use

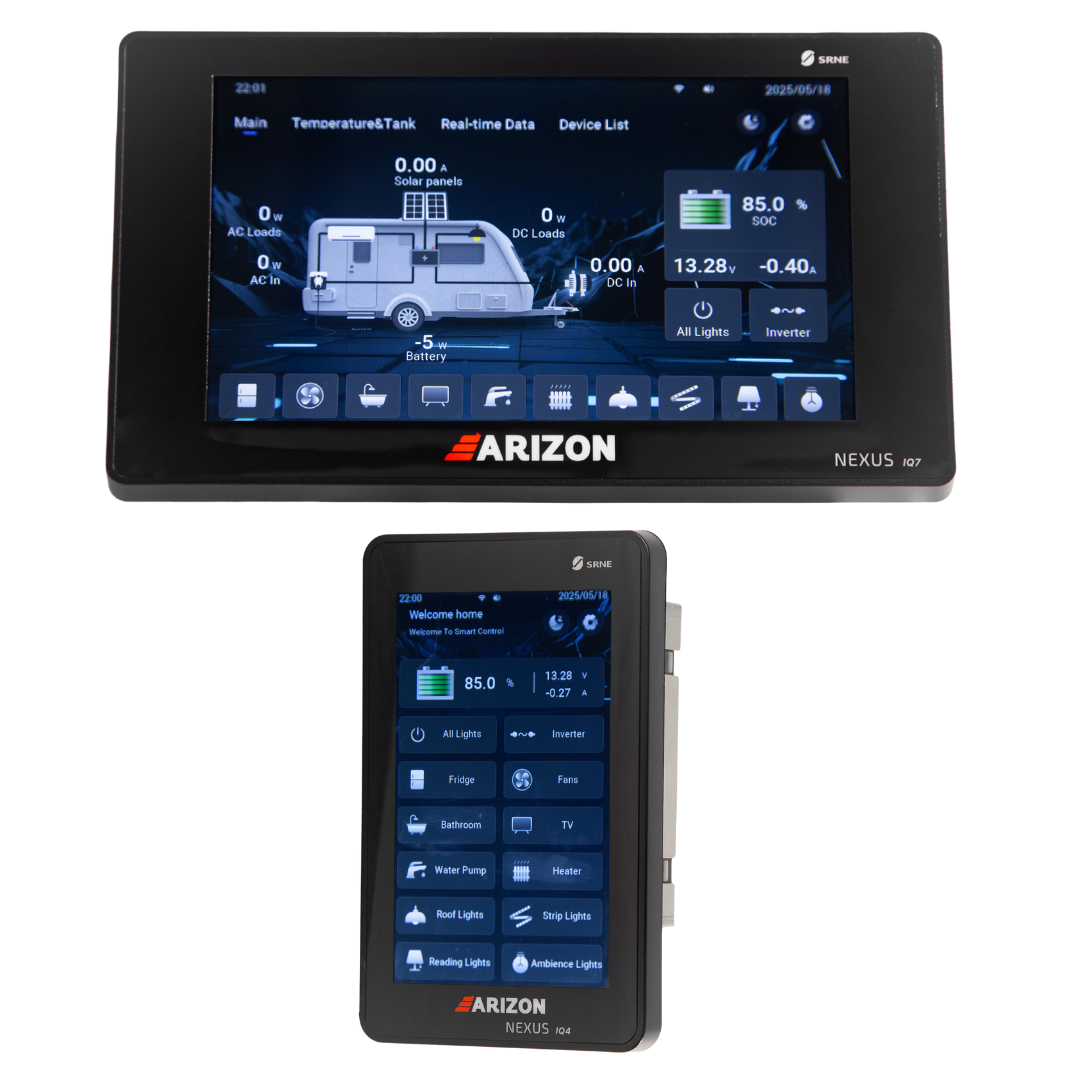

The Arizon NEXUS IQ7 and IQ4 LCD Touch Screens bring intuitive, customisable control to your fingertips. With multiple display options, you can choose a screen that fits your needs and preferences. The IQ7 offers a 7" screen with high resolution (1024 x 600) and quick key customisations, while the compact IQ4 provides a 4.3" touchscreen with a sharp 800 x 480 resolution.

These screens offer a range of display and control options, including light/dark modes and the ability to cascade multiple IQ screens for even greater control flexibility.

Key Features

• 12V system support with wide voltage input range (9-18V)
• 120A total output current
• 12 load outputs (3x30A, 3x20A, 6x10A)
• Built-in Bluetooth for real-time control and mobile app integration
• IQ7 and IQ4 touch screen displays
• High-temperature protection and advanced safety features
• Customisable quick keys and light/dark modes
• Cascading support for multiple IQ screens
• Fuses with bypass for ease of troubleshooting
• RS485 and CAN communication support

Built for Real Applications

Perfect for:

• Caravan and RV electrical systems
• Motorhome and van conversions
• Marine and boat installations
• Mobile off-grid setups
