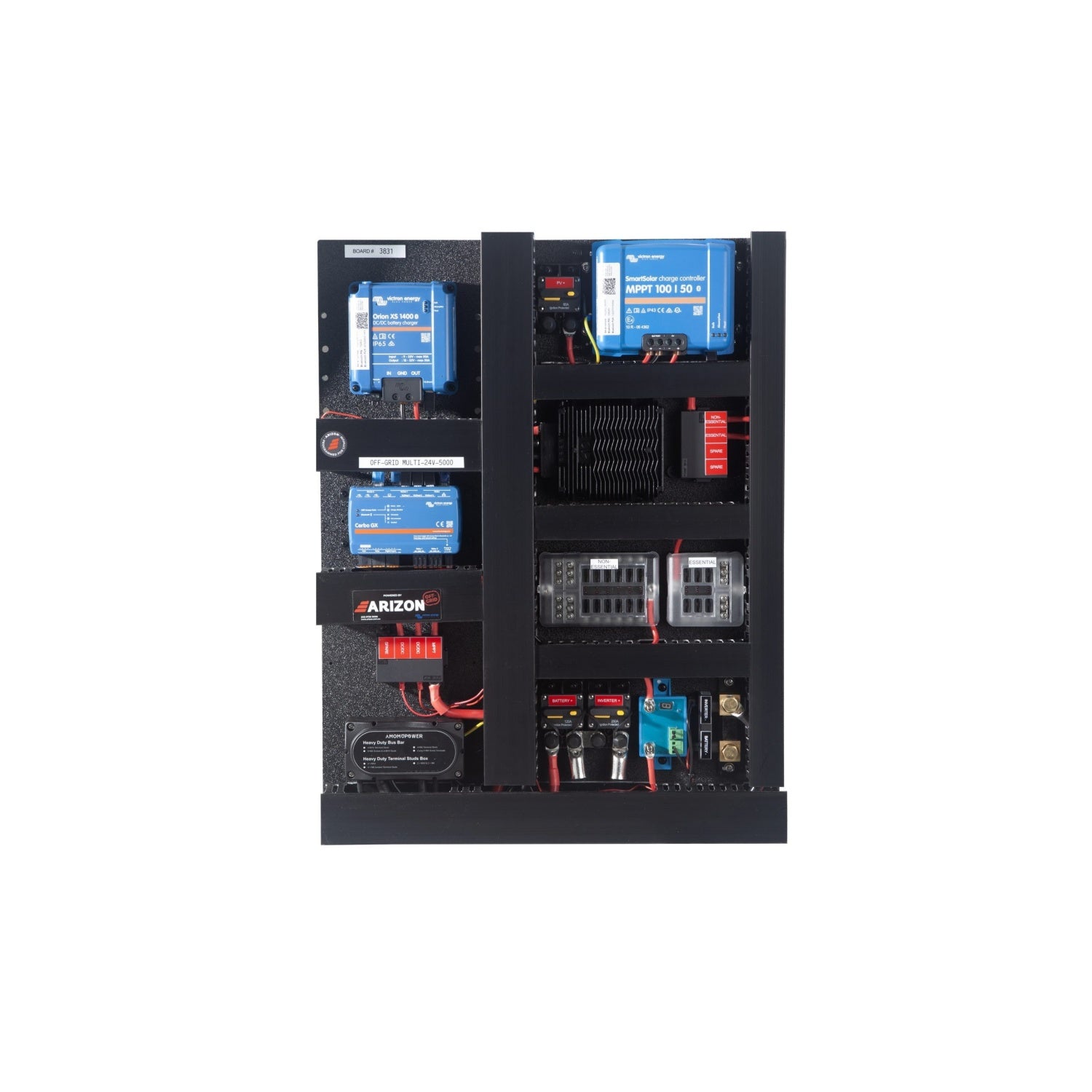

Arizon Off-Grid Multi 24V 5000 Power Control System
Flagship electrical system for modern off-grid living. 5000VA inverter. 24V. 2-piece modular design. Space-saving behind-fridge installation.
Our Most Popular & Best-Selling Power Solution
Engineered for those who demand the perfect balance of power, efficiency, and smart design. This all-in-one system is the ultimate companion for off-grid adventures.
Innovative Space-Saving Design
Cleverly utilises the often-wasted cavity behind a 12V compressor fridge in your caravan or motorhome. By mounting seamlessly into an externally accessible compartment, it frees up precious internal storage space that would otherwise be lost under your bed or lounge.
Simple, Flexible Installation
The innovative 2-piece modular construction allows for easier installation, making it a practical choice for both manufacturers and DIY fit-outs.
Key Benefits
- 5000VA pure sine wave output
- 24V system — higher efficiency, lower current
- 2-piece modular design for easy installation
- Space-saving behind-fridge installation
- Includes 24V/12V DC converter (100A)
- Cerbo GX with GX Touch 70 display
- Remote monitoring via VRM portal
Built for Real Applications
Perfect for:
- Large caravan and motorhome systems
- Off-grid touring setups
- 24V power systems
- Professional vehicle and commercial systems
What's Included
- 1 x SmartSolar MPPT 100/50 solar controller
- 1 x Orion XS 1400 DC-DC charger
- Smart Shunt 500A/50mV battery monitor
- Cerbo GX communication centre

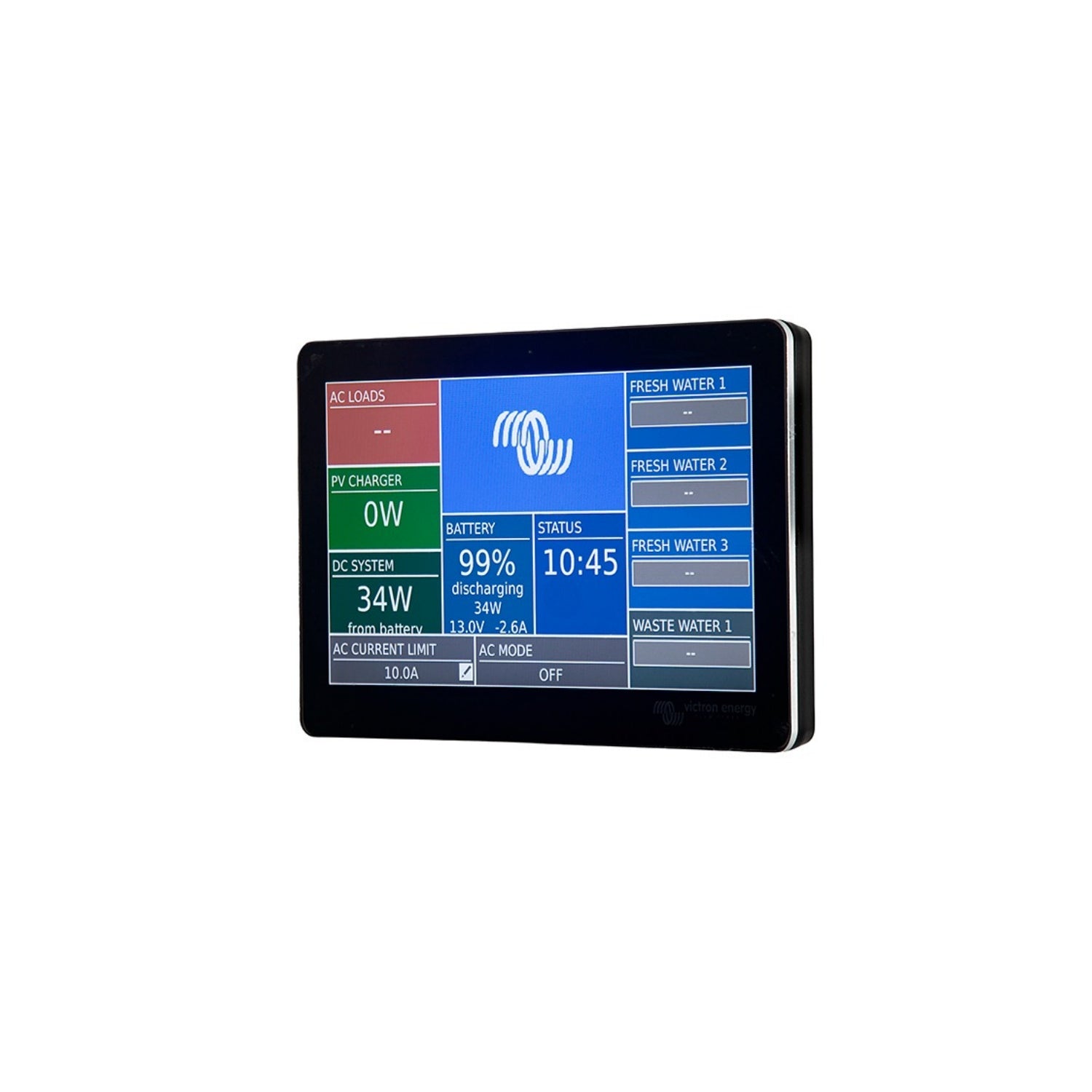

- GX Touch 70 display
- Battery Protect 65A

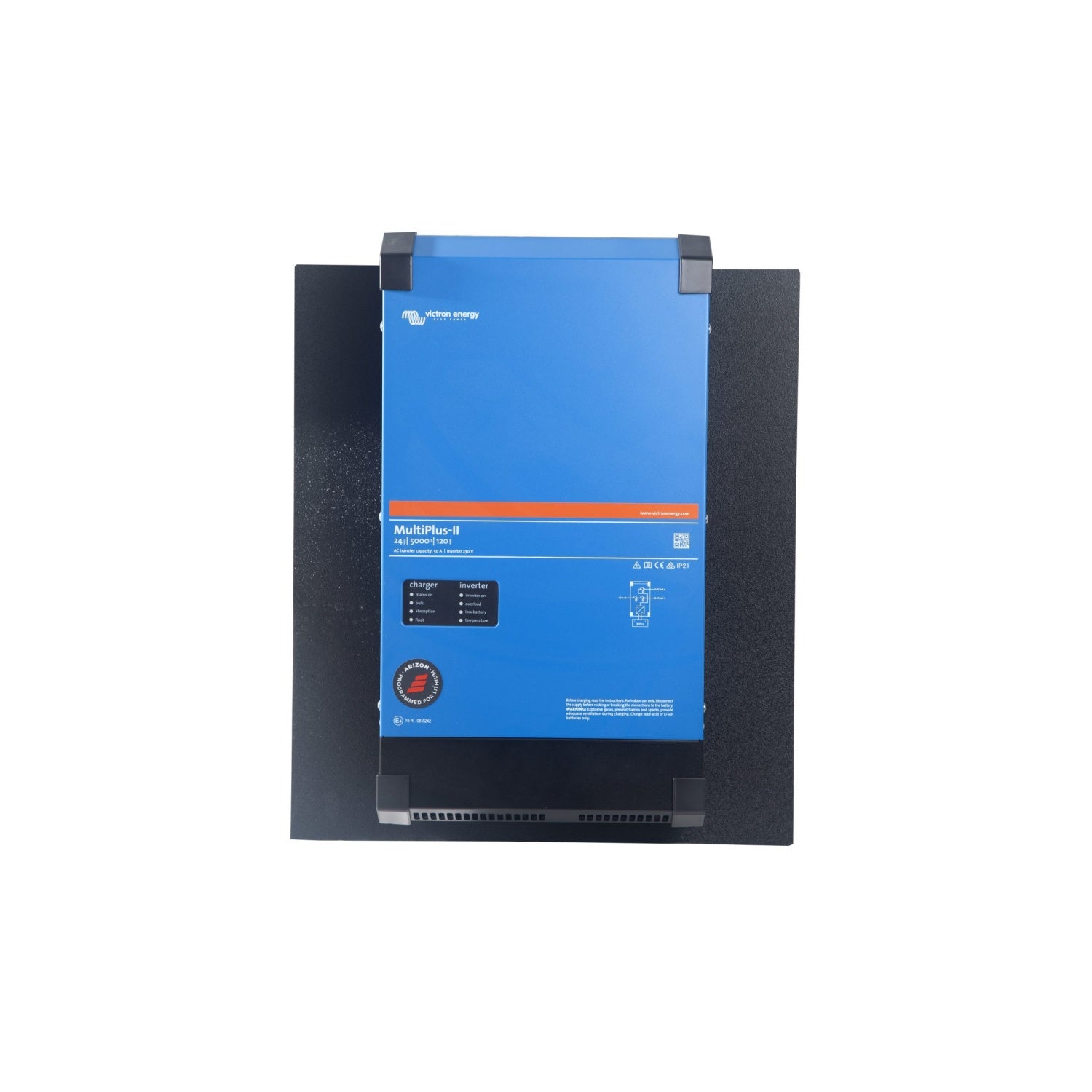

- MultiPlus-II 5000VA inverter/charger
- Arizon 100A 24V/12V DC converter
- 4 x Midi fuse box (Positive 24V)
- 4 x Midi fuse box (Positive 12V)
- 6 pole busbar (negative)
- 1 x 12 ways fuse block (non-essential)
- 1 x 6 ways fuse block (essential)
- 3 x resettable circuit breakers
SKU: B-OGM-24-5000
Dimensions (Total): 530 x 1325 x 160mm
Dimensions (Separately): Main Board 530 x 685 x 100mm | Inverter Board 530 x 640 x 160mm
Total Weight: 47kg | Main Board: 13.1kg | Inverter Board: 33.9kg
Complete Your System
To get the best out of the system, pair it with Arizon's superior lithium batteries (5-year warranty) and highly efficient 24V solar panels.
Talk to Our Team
Not sure if the 24V 5000 system is right for your setup?
We'll help you design the right system.
