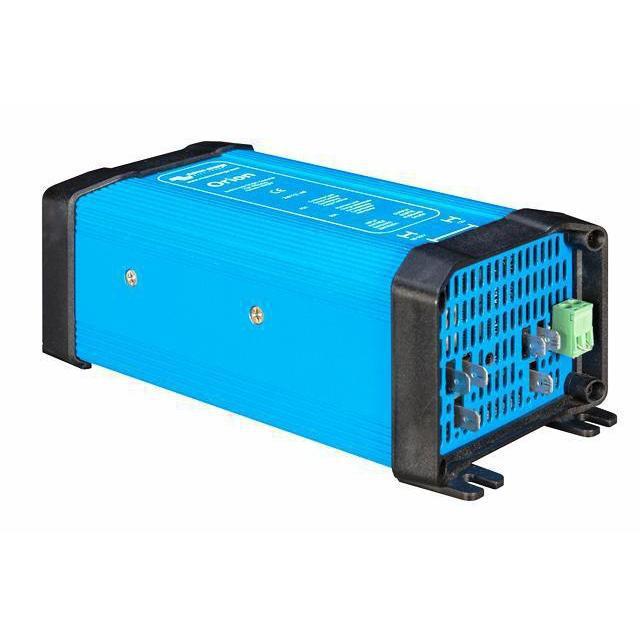

Orion 24/12-70A DC-DC Converter IP20
Professional DC-DC converter. 24V to 12V step-down. 70A continuous output. 92% efficiency. Adjustable output voltage. Non-isolated.
Step Down High Power
Converts 24V DC to a stable 12V DC output, allowing you to power 12V appliances, lights, and accessories from a 24V battery bank. Perfect for trucks, commercial vehicles, marine systems, and off-grid setups where a 24V system is used but 12V equipment needs to be powered.
Adjustable Output Voltage
The output voltage can be adjusted between 10V and 15V via an internal potentiometer, with a default setting of 13.2V. This flexibility allows the unit to also function as a battery charger — for example, to charge a 12V starter or accessory battery in an otherwise 24V system.
Remote On-Off
The remote on-off connector eliminates the need for a high-current switch in the input wiring. Operate the converter with a low-power switch or connect directly to the engine run/stop switch for automatic control.
Parallel Operation
All models with adjustable output can be paralleled to increase output current. Up to five units can be connected in parallel, allowing you to scale your power conversion capacity as your system grows.
Temperature-Controlled Fan
Features a temperature-controlled fan for quiet, efficient cooling. The fan only activates when needed, keeping noise to a minimum during normal operation.
Key Benefits
- 70A continuous output current (85A peak)
- 92% efficiency — minimal power loss
- Adjustable output voltage (10-15V)
- Can be used as a battery charger
- Remote on-off capability
- Parallel up to 5 units for higher current
- Temperature-controlled fan
- Short circuit proof
- IP20 protection rating
- 5-year warranty
Built for Real Applications
Perfect for:
- Trucks and commercial vehicles (24V to 12V conversion)
- Marine and yacht systems
- Off-grid power setups
- Charging 12V batteries in 24V systems
- Powering 12V accessories in 24V vehicles
What's Included
- Orion 24/12-70A DC-DC converter unit
- Four insulated Fastons Female Crimp 6.3mm connectors
- User manual
Note: This is a non-isolated DC-DC converter — input and output share a common negative. For applications requiring galvanic isolation, please see isolated models. M6 bolts for DC connection. IP20 rated for indoor or protected installations.
Complete Your System
Works seamlessly with:
- 24V battery banks (input side)
- 12V battery banks or DC loads (output side)
- Remote on-off switch (optional accessory)
- Additional Orion units (parallel configuration — up to 5 units)
Build a reliable, high-power DC-DC conversion solution with Victron Energy.
