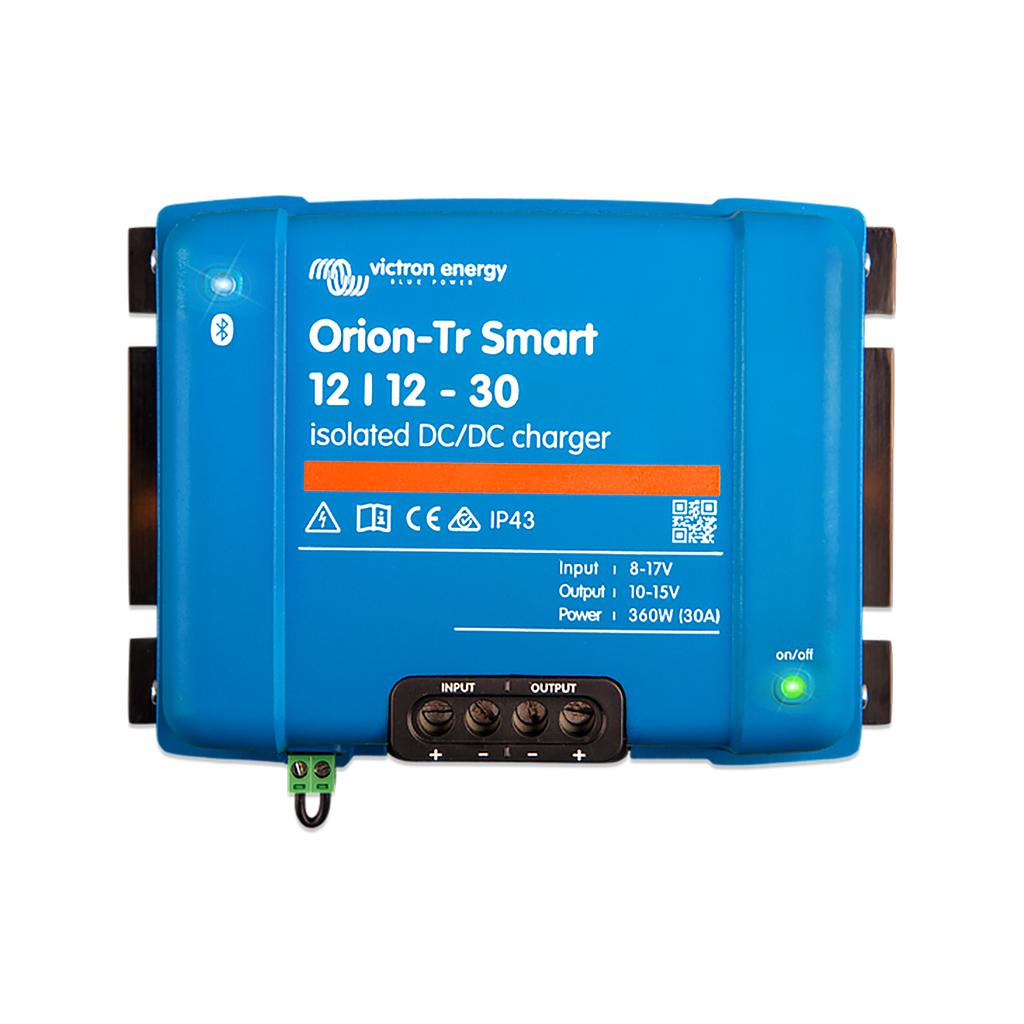

Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC Charger

Professional isolated DC-DC battery charger. 30A output. Built-in Bluetooth. Adaptive 3-stage charging for lead-acid and lithium batteries.

Galvanic Isolation

This isolated model features galvanic isolation between input and output, eliminating issues related to line loss or power interruption due to overload. Essential for applications where input and output need to be electrically separated — such as marine installations, vehicles with multiple battery banks, or systems with different ground potentials.

Smart Alternator Compatible

Vehicle manufacturers are now introducing smart ECU-controlled alternators to increase fuel efficiency and reduce emissions. Smart alternators deliver variable output voltage and shut down when not needed. The Orion-Tr Smart features an engine running detection mechanism, preventing the charger from discharging the starter battery when the alternator is not supplying power.

Bluetooth Smart Built-in

Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available via the free VictronConnect app.

Adaptive 3-Stage Charge Algorithm

Features bulk, absorption, and float charging stages. For lead-acid batteries, absorption time is kept short during shallow discharges to prevent overcharging, and automatically increased after deep discharge to ensure full recharge. For lithium batteries, absorption time is fixed at 2 hours by default. Alternatively, a fixed output voltage can be selected.

Remote On-Off

A remote on/off switch or relay contact can be connected to the two-pole connector. Typical use cases include a user-operated hard-wired switch and automatic control by a Battery Management System.

Can Be Paralleled

An unlimited number of units can be connected in parallel to increase charging current. This allows you to scale your charging capacity as your system grows.

Electronic Protection

• Over-temperature protection with power derating when temperature is high
• Overload protection
• Short circuit protection
• Connector over-temperature protection

Key Benefits

• 30A continuous output current
• 87% efficiency
• Galvanic isolation between input and output
• Built-in Bluetooth with VictronConnect app
• Adaptive 3-stage charging algorithm
• Smart alternator engine detection
• Remote on-off capability
• Parallel multiple units for higher current
• Suitable for lead-acid and lithium batteries
• 5-year warranty

Built for Real Applications

Perfect for:

• Marine and yacht dual-bank systems
• Dual battery systems in cars and 4WDs
• Caravan and RV service battery charging
• Vehicles with smart alternators
• Applications requiring electrical separation
• Lithium battery charging from vehicle alternator
