An MPPT (Maximum Power Point Tracking) solar charge controller is a key component in modern solar power systems. It maximizes the energy harvested from solar panels and improves overall charging efficiency.
Compared to traditional PWM controllers, MPPT technology delivers higher efficiency, faster battery charging, and better performance in real-world conditions.
What Is MPPT?
MPPT stands for Maximum Power Point Tracking. It is a technology that continuously adjusts the electrical operating point of solar panels to extract the maximum available power.
Because solar panels and batteries operate at different voltage levels, an MPPT controller efficiently converts excess voltage into usable charging current.
How MPPT Works
Solar panels generate power at varying voltages depending on sunlight and temperature. An MPPT controller tracks the optimal voltage point and converts it into the correct voltage required by the battery.
This process ensures that more of the solar energy is captured and used instead of being lost.
MPPT vs PWM: Key Differences
| Feature | PWM Controller | MPPT Controller |
|---|---|---|
| Efficiency | ~75–80% | ~95–97% |
| Power Conversion | Voltage reduced, power lost | Voltage converted into usable current |
| Performance | Basic | Advanced & optimized |
| Best Use Case | Small systems | Off-grid & modern systems |
Key Benefits of MPPT Controllers
- Higher efficiency and more usable solar power
- Faster battery charging, especially for larger systems
- Improved performance in low sunlight conditions
- Better compatibility with lithium and AGM batteries
When MPPT Makes the Biggest Difference
- Low sunlight conditions: Maximizes limited solar input
- Cold environments: Captures higher panel output at lower temperatures
- Low battery state: Delivers higher charging current when needed
- Long cable runs: Supports higher voltage panels, reducing power loss
Flexible System Design
MPPT controllers allow greater flexibility in system design, including:
- Using higher voltage solar panels (24V / 48V)
- Charging lower voltage battery systems (12V / 24V)
- Reducing cable size and installation losses
Typical Applications

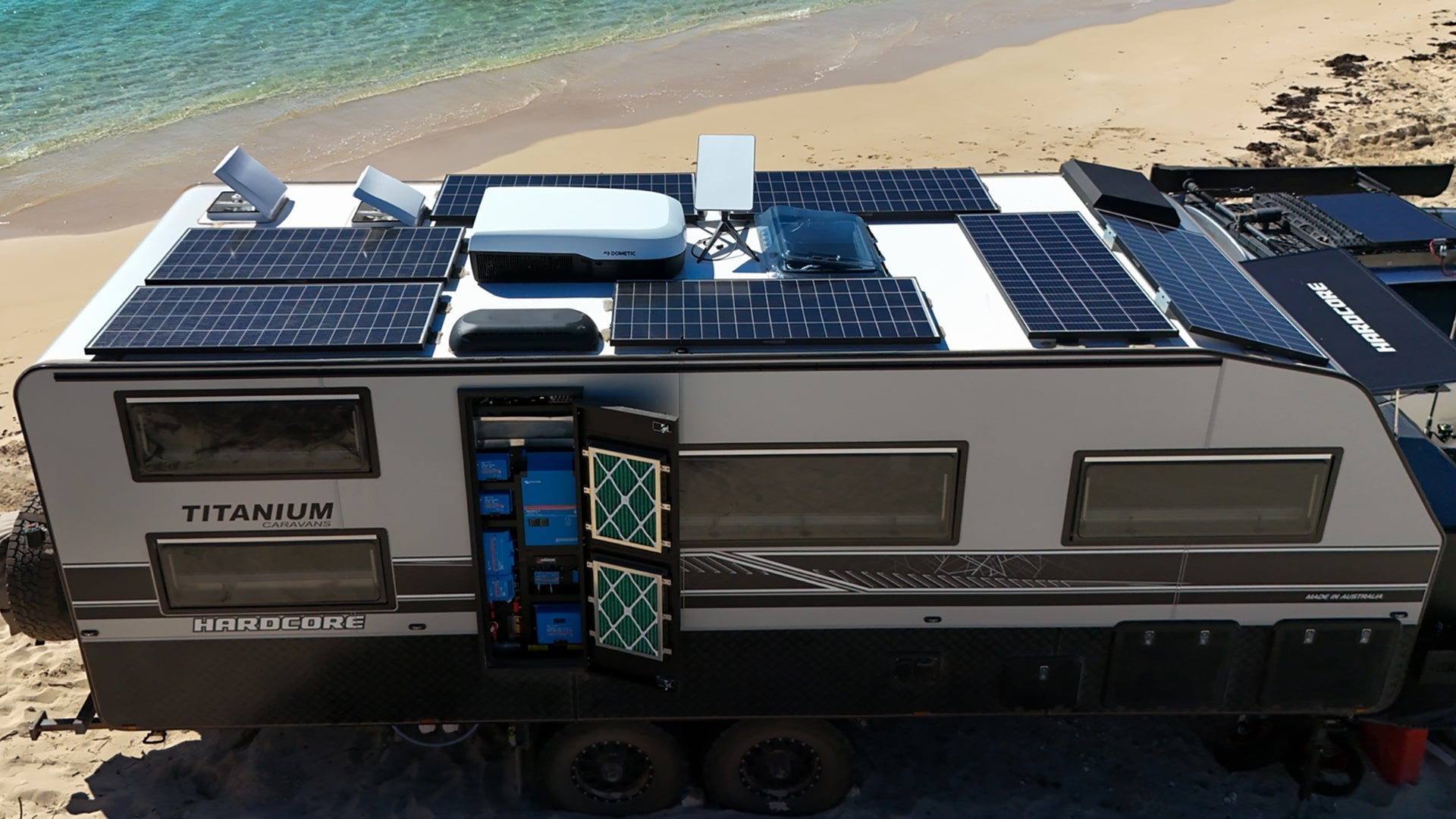

- Caravan and RV solar systems
- Off-grid residential setups
- Commercial mobile power systems
- Remote and industrial energy solutions
Conclusion
For most modern solar systems, MPPT charge controllers provide significantly better efficiency and performance compared to PWM. They are the preferred choice for off-grid, caravan, and high-demand applications.
To build an efficient solar system, it's also important to choose the right battery configuration. See our 12V vs 24V lithium battery guide for system planning.
For a complete system overview, see our Off-Grid Power System Design Guide.
Need Help Choosing the Right Solar Controller?
Our team can help you select the right MPPT controller based on your solar panels, battery type, and system size.
Frequently Asked Questions
Is MPPT better than PWM?
Yes. MPPT controllers are significantly more efficient (typically 95–97%) and provide better performance, especially in larger or off-grid solar systems.
Do I need an MPPT controller for my system?
If you are using lithium batteries, larger solar arrays, or require higher efficiency, an MPPT controller is strongly recommended.
Does MPPT improve charging speed?
Yes. MPPT controllers convert excess voltage into additional current, resulting in faster and more efficient battery charging.
